Single Phase 12KVA Automatic Voltage Regulator / Stabilizer SVC 110-260v Input 220v Output AC Current Voltage Protection
Description
|
Model
|
SRWII-12000-L
|
||
|
Nominal Power
|
12000VA
|
||
|
Power Factor
|
0.6-1.0
|
||
|
Input
|
|||
|
Operating Voltage Range
|
95~285V
|
Regulation Voltage Range
|
110~275V
|
|
Frequency
|
50HZ
|
Connection Type
|
Input terminal block
|
|
Output
|
|||
|
Operating Voltage
|
180~255V
|
High Cut Voltage
|
255V
|
|
Low Cut Voltage
|
180V
|
Safety Cycle
|
8 Seconds / 180 Seconds (Optional
|
|
Frequency
|
50HZ
|
Connection Type
|
Output terminal block
|
|
Regulation
|
|||
|
Regulation %
|
8%
|
Number of Taps
|
7
|
|
Transformer Type
|
Toroidal auto transformer
|
Regulation Type
|
Relay type
|
|
Indicators
|
|||
|
LED display
|
Input voltage、Output voltage、Delay time、Load usage、Normal working
|
||
|
Protection
|
|||
|
Over Temperature
|
Auto Shutdown at 120 ℃
|
Protection
|
Auto Shutdown
|
|
Overload
|
Auto Shutdown
|
Over / Under Voltage
|
Auto Shutdown
|
A. We accept TT, 30% deposit and 70% balance against copy of B
Q 2. how's the delivery time
A. usually it will take about 10-25 days for production. For sample usually in 1 week
Q 3. Tell me the standard of package
A. For the small capacity, color box as inner package and carton as delivery package
For big capacity, use strong wooden case for protection
Q 4. What kind of material of transformer

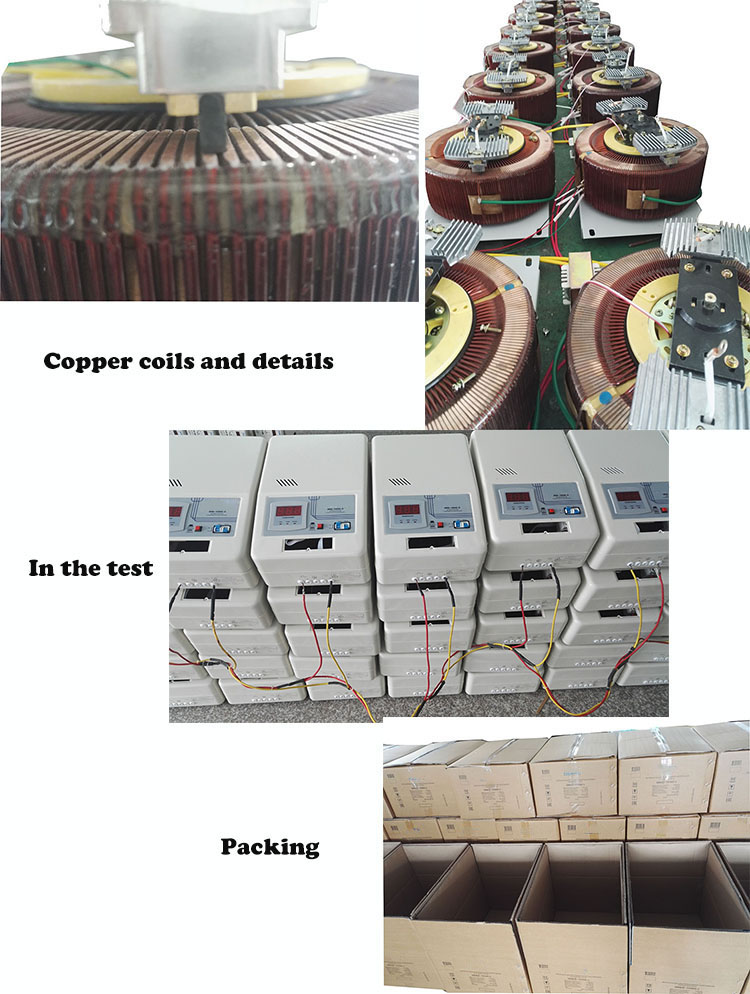

A. For servo type stabilizer, we have two types, one 100% copper and the other is copper with aluminum. It depends on your requirment. In fact, those two have no difference if normal work well. Only except the long life. Copper is better and also higher price. For relay type stabilizer, we use to rod coils, the material is aluminum. comparing with square coils, to rod coils with high efficiency
Q 5. Could you offer Form A or C/O
A. It totally not a problem. We can prepare relative documents to forging affairs office or other office to apply for this
certificate
Q 6. Would you accept to use our logo
A. Our logo is HEYA. If your order has good quantity, it absolute no problem to do OEM
But you use our logo HEYA will be high appreciated
Q 7. We want to know month capacity
A. It depends on which model. For example for relay type small capacity, month capacity can reach near 10000pcs and big capacity near 2000pcs
Q 8. Where is your market
We hope you can join us and make mutual benefit from our cooperation
Q 9. what kind of certificate you have
A. Our company already obtained ISO9001, BV, EAC, SONCAP, CE, PCT, SGS, design and technical patents certificate
HEYA
The Single Phase 12KVA Automatic Voltage Regulator / Stabilizer is an item that is high-quality can really help you protect your electrical products
Ensure the durability of the devices. At HEYA this voltage regulator can regulate the voltage originating from your own power this is certainly very own source supply a well balanced output of 220 volts AC having its smart design and advanced features
An input is had it could work with most generators and energy sources by it voltage range of 110-260 volts which means that. Built with present voltage security which protects your products from power surges and fluctuations. An choice this is certainly ideal areas with unstable power supply such as in rural areas and towns which can be tiny
Easy to utilize and keep. Automatic begin and stop function and therefore the regulator automatically turns on / off whenever needed to help in keeping up utilizing the voltage that is optimal for the appliances
Having an display that is LED provides voltage this is certainly real-time which helps it be effortless to monitor your power. Compact design lets you transport and install as well as its construction that is durable guarantees it might withstands harsh problems that are ecological
For a high-quality voltage regulator that it is possible to depend on this is due to the fact is certainly worth
