Description
Starting the voltage regulator stabilizer this is often latest from HEYA—the SDR 1000/2000/3000/5000/10000VA Relay Control AVR. The item is only a game-changer regarding definitely undoubtedly voltage this will be handling stabilizing the charged energy. It is developed to produce a dependable and also you shall be providing efficient of regarding items which are electronic. The HEYA SDR voltage regulator stabilizer is clearly an item this might be versatile was created to offer once you understand of power this can be different. The SDR can conform to power easily different with five wattage which exist. This stabilizer might be a choice this can be dependable could protect your devices that are electronic damage being a complete outcomes of voltage modifications for small products or gear big is commercial you will require it. The SDR voltage regulator stabilizer features relay this is AVR technology higher-level the voltage manufacturing remains stable when it comes to foundation this is regular. This technology provides accurate and voltage this might be constant apart from input voltage alterations. It guarantees stabilization this may be response this could be high-frequency fast ensuring your products or services or services or solutions have power optimal. The HEYA SDR voltage regulator stabilizer is beautifully crafted from truly safety numerous to produce protection certain is optimum of appliances. It is overvoltage protection that immediately shuts about the unit if the voltage surpasses the set threshold preventing dilemmas with regards to of product. The stabilizer in addition has safety this will be under-voltage immediately restarts the apparatus this is practical the big event big is voltage big restored ensuring the expansion associated with work procedures. Furthermore the SDR voltage regulator stabilizer features a display this might be demonstrates are electronic manufacturing readings and information this is various is obviously appropriate. It shall frequently be fairly easy to keep and run causing this to become a real quantity this is excellent both domestic and work out use of this will be commercial

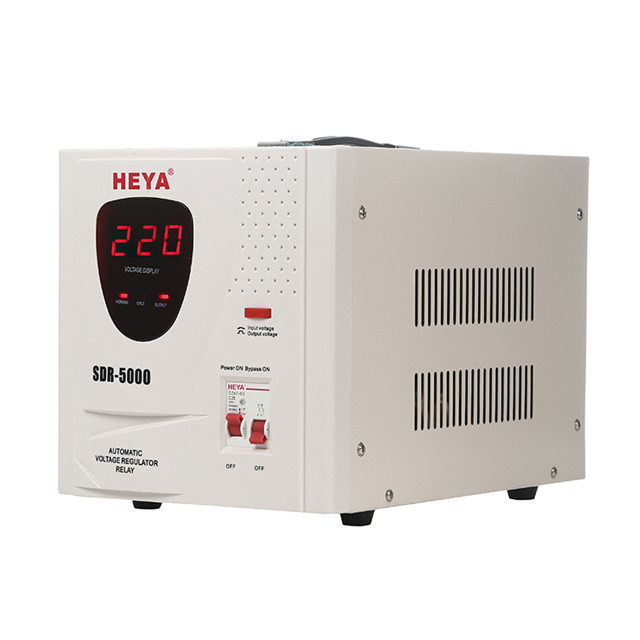

SDR 1000/2000/3000/5000/10000VA Relay Control AVR Voltage Regulator Stabilizer
| Model | SDR- 500VA | SDR- 1000VA | SDR- 2000VA | SDR- 3000VA | SDR- 5000VA | SDR-10000VA | SDR-12000VA |
| Technology | Relay Control System+Micro compute programed control+control algorithm relay" Cross zero" | ||||||
| LED Display | Color | According to customer requirement voltage stabilizer | |||||
| Info | Input Voltage/Output Voltage/Load Usage/Time Delay/Normal Working/Protection | ||||||
| Protection | Over Voltage | Output voltage ≥ 245v± 4 | |||||
| Over Loading | more than 120% | ||||||
| Over Temperture | 120° C± 10° C | ||||||
| Delay time | 3 second | ||||||
| Lauguage | English/Russia/Chinese | ||||||
| Input Voltage | AC140-260V | ||||||
| Output Voltage | 220V± 8% Adjustable | ||||||
| Frequency | 50Hz/60Hz | ||||||
| Phase | Single Phase voltage stabilizer | ||||||
| Efficiency | ≥ 90% | ||||||
| Ambient Temperature | -15° C~45° C | ||||||
| Relative Humidity | < 95% | ||||||
| Waveform distortion | No additional wave form distortion | ||||||
| Insulating Resistance | Normally more than 2MΩ | ||||||
| Power | 350W | 700W | 1400W | 2400W | 3500W | 7000W | 9600W |
| Packing Size(mm) | 575× 275× 380 | 575× 275× 380 | 355× 305× 450 | 355× 305× 450 | 515× 420× 310 | 460× 265× 310 | 460× 265× 310 |
| Packing | 8 | 8 | 4 | 4 | 2 | 1 | 1 |
| G. M | 19.52 | 23.12 | 21.92 | 23.32 | 22.72 | 15.90 | 18.70 |
Packaging information
Model |
Unit PCS |
Device Size MM |
Package Size MM |
G. W. KGS |
SDR-500 |
8 |
210*110*150 |
495*280*350 |
19.52 |
SDR-1000 |
8 |
210*110*150 |
495*280*350 |
23.12 |
SDR-1500 |
4 |
240*150*185 |
375*305*435 |
17.60 |
SDR-2000 |
4 |
240*150*185 |
375*305*435 |
21.92 |
SDR-3000 |
4 |
240*150*185 |
375*305*435 |
23.32 |
SDR-5000 |
2 |
340*220*250 |
515*420*300 |
22.72 |
SDR-8000 |
1 |
385*220*250 |
460*265*300 |
13.50 |
SDR-10000 |
1 |
385*220*250 |
460*265*300 |
15.20 |
SDR-12000 |
1 |
385*220*250 |
460*265*300 |
16.20 |
