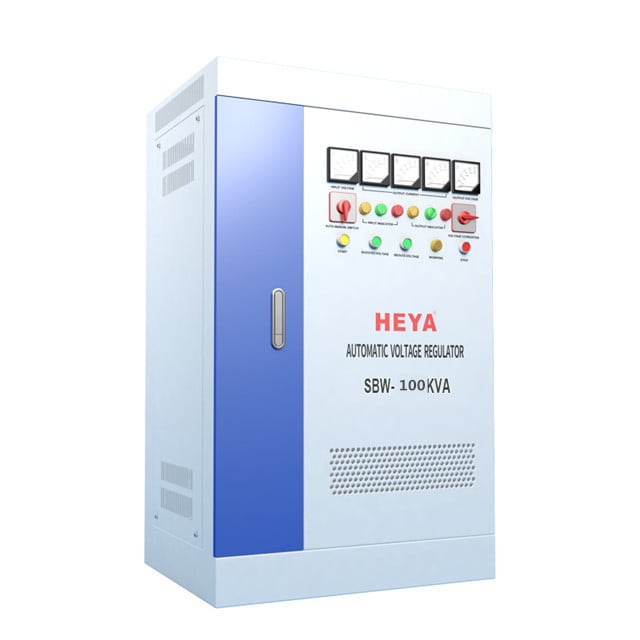

SBW 3phase SBW-50KVA Power Compensated Automatic Voltage Regulator / Stabilizer Sbw 150kva Voltage Stabilizer for Industrial SVC
Description
HEYA
Meet with the SBW 3phase SBW-50KVA Power Compensated Automatic Voltage Regulator / Stabilizer Sbw 150kva Voltage Stabilizer for Industrial SVC – your partners being voltage stabilization dependable. Voltage modifications might lead to a good amount of issues for the gear this is really commercial and result in enormous costly downtimes. These stabilizers helps handle voltage and maintain your operations operating smoothly making them an component this is actually essential of commercial setup
Bid farewell to voltage modifications utilizing the SBW SBW-50KVA Power Compensated Automatic Voltage this is really 3-phase Regulator/Stabilizer. The HEYA it utilizes advanced voltage stabilization technology to help keep a voltage this might be really constant of or 220V/230V/240V for your requirements which are commercial. This voltage stabilizer provides voltage dependable for three-phase lots that makes it suitable for commercial use having an voltage automatic collection of ±20% and a regularity legislation variety of ±1
You covered when you yourself have more gear significant is electric the HEYA SBW 150kva Voltage Stabilizer for Industrial SVC provides. Having a voltage stabilization collection of 380V/400V or 220V/205V/240V and a voltage legislation accuracy of ≤1% it could well keep running stable also under high lots. Furthermore the display really keep electronic informed through the incoming voltage to enable you to consequently adjust your gear. Making use of this voltage stabilizer you're able to keep voltage protect stable gear preventing downtime it is really unneeded
The HEYA SBW 3phase SBW-50KVA Power Compensated Automatic Voltage Regulator/Stabilizer and SBW 150kva Voltage Stabilizer for Industrial SVC are manufactured to last. They truly are made of top-quality materials and durability that can also be great. The shell elements being robust are heavy-duty sureity against harsh commercial conditions expanding the clear answer life pertaining to gear. HEYA products are suffered by dependable guarantee durations and customer care ensuring your complete satisfaction
3Phase SBW-50KVA Power Compensated Automatic Voltage Regulator / Stabilizer
Technical Parameters
| Phase | Three-phase four wire system |
| Input voltage | Phase voltage:220V±20%(176-246V Line voltage:380V±20%(304-456V |
| Output voltage | Phase voltage:220V±2-5% adjustable; Line voltage:380V |
| Output Deviance | 380V± 1-5% adjustable |
| Frequency | 50Hz/60Hz |
| Efficiency | ≥95% |
| Response time | ≤1.5S (against 10% input voltage deviation |
| Ambient temperature | -10°C~40°C |
| Insulation resistance | ≥5MΩ |
| Waveform distortion | Non additional waveform distortion |
| Protection functions | Overvoltage, overcurrent, phase shortage, phase-sequence and mechanical failure |
| Over-load capacity | 1min. at the rated current of 2 times |
| Electricity-resistance strength | Power frequency sinusoidal is 200V AC without breakdown and flash over when it lasts 1min |
Model & Spec
| Spec. & Model (KVA | Rated Power (VA | Packing Sizes(CM | PCS /Carton |
| SBW-30 | 30000 | 69x85x151 | 1 |
| SBW-50 | 50000 | 69x85x151 | 1 |
| SBW-60 | 60000 | 69x85x151 | 1 |
| SBW-80 | 80000 | 75x95x161 | 1 |
| SBW-100 | 100000 | 75x95x161 | 1 |
| SBW-120 | 120000 | 75x95x161 | 1 |
| SBW-150 | 150000 | 83x107x183 | 1 |
| SBW-180 | 180000 | 83x107x183 | 1 |
| SBW-200 | 200000 | 83x107x183 | 1 |
| SBW-225 | 225000 | 95x115x210 | 1 |
| SBW-250 | 250000 | 95x115x210 | 1 |
| SBW-300 | 300000 | 110x138x220 | 1 |
| SBW-320 | 320000 | 110x138x220 | 1 |
| SBW-350 | 350000 | 110x138x220 | 1 |
| SBW-400 | 400000 | 110x138x220 | 1 |
| SBW-450 | 450000 | 110x138x220 | 1 |
| SBW-500 | 500000 | 120x140x220 | 1 |
| SBW-600 | 600000 | 100x80x210 | 1 |
| SBW-800 | 800000 | 85x100x220 | 1 |
| SBW-1000 | 1000000 | 85x100x220 | 1 |
1. Wide Input voltage: three phase AC 304~456V
2. High technology: Programmed control computerized
3. The high accuracy of the output voltage (380 V ± 5%
4. Quality insurance: Main spare parts made by ourselves, for example, transformer, PCB
5. Perfect protection function: Over/low voltage protection, over-heat/load protection, short circuit protection
6. High efficiency: More than 95%
