Description
If you're searching for a dependable and efficient voltage for your house or workplace, take a look at the Heya’s ac 10000va 50hz/60hz voltage regulator/stabilizer. With an ability as high as 10000VA, this technique was made to guard your electronic devices from unexpected voltage changes and surges.
The Heya’s AC 10000VA voltage stabilizer works with a selection of various home devices for example, air conditioners, fridges, televisions, and much more. It has a voltage assortment of 140V - 260V this means that the products will be provided with a secure and constant supply irrespective of any changes or interruptions inside the main supply.
Among the standout options that come with the Heya’s AC 10000VA voltage regulator is its capacity to manage both 50Hz and 60Hz frequencies. This implies you can use it across a number of nations and areas seamlessly, providing you with reassurance during worldwide travel.
The Heya brand is well-known for its top-notch items and customer-focused approach and the AC 10000VA voltage regulator is not any exclusion. Constructed with durable elements and developed to last, it was made to offer dependable and constant solution for many years.
Then Heya’s ac 10000va 50hz/60hz voltage regulator/stabilizer is a good option if you are buying a voltage regulator that do not only protects your devices but additionally, easy to use. Its intuitive display panel will allow you to monitor the input and production voltage amounts along with any faults or mistakes that will take place. Having an easy screen, it is easy to set and adjust the voltage to match your particular requirements

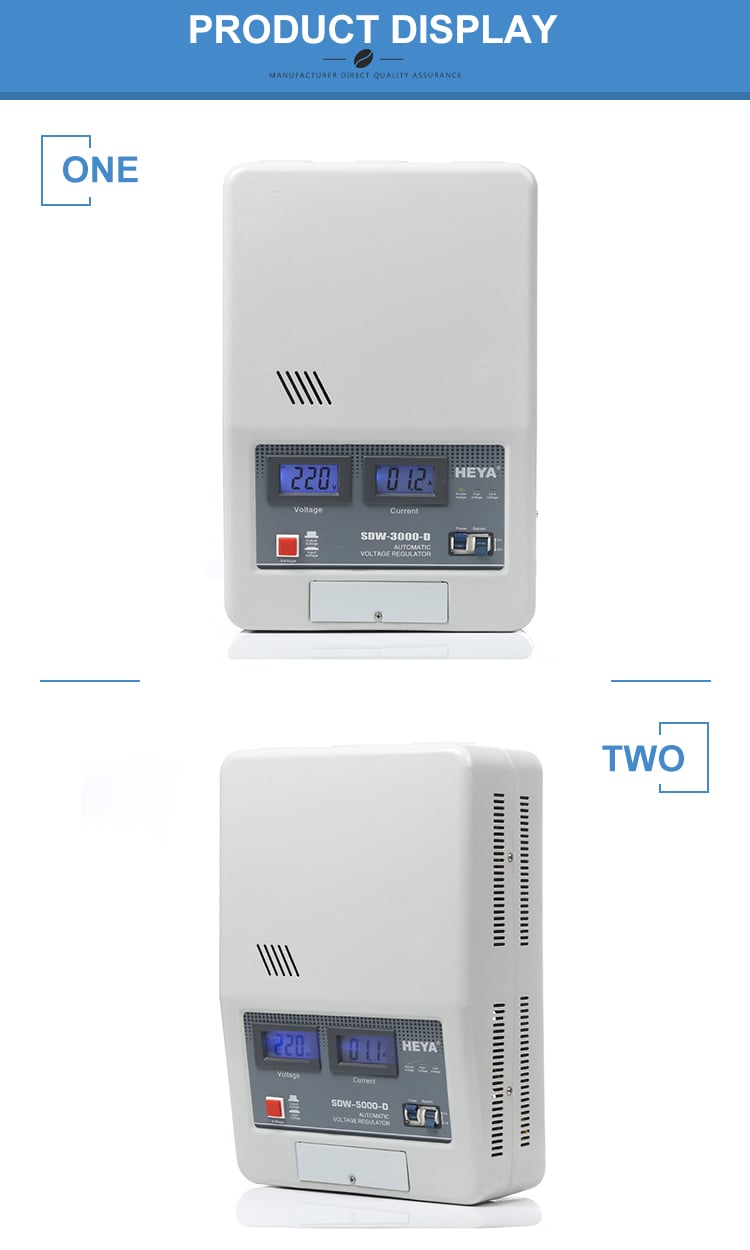

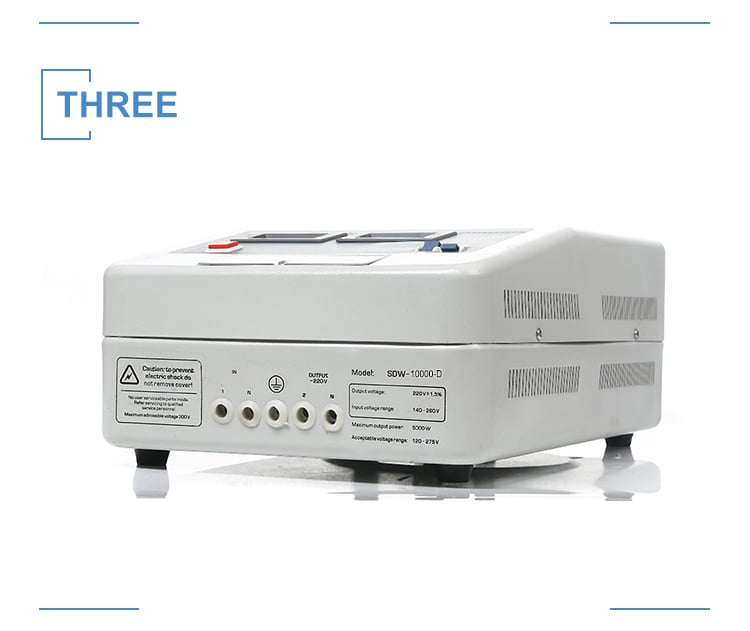

Heya ac 10000va 50hz/60hz voltage regulator/stabilizer
Technology Parameter
Model |
SDW-500 |
SDW-1000 |
SDW-1500 |
SDW-2000 |
|
SDW-3000 |
SDW-5000 |
SDW-8000 |
SDW-10000 |
Nominal Power |
500VA |
1000VA |
1500VA |
2000VA |
|
3000VA |
5000VA |
8000VA |
10000VA |
Power Factor |
0.6-1.0 |
|||
Input | ||||
Operating Voltage Range |
120~275V |
|||
Regulation Voltage Range |
140~260V custom made |
|||
Frequency |
50HZ |
|||
Connection Type |
0.5~1.5KVA(Power cord with plug), 2~12KVA Input terminal block |
|||
Output | ||||
Operating Voltage |
180~255V |
|||
High Cut Voltage |
255V |
|||
Low Cut Voltage |
180V |
|||
Safety Cycle |
3 Seconds / 180 Seconds Optional |
|||
Frequency |
50HZ |
|||
Connection Type |
0.5-1.5KVA(Output socket), 2~10KVA Output terminal block |
|||
Regulation | ||||
Regulation % |
1.5% / 3.5% |
|||
Number of Taps |
NO |
|||
Transformer Type |
Toroidal auto transformer |
|||
Regulation Type |
Servo type |
|||
Indicators | ||||
Digital / Meter display |
Input voltage, Output voltage, Load current |
|||
Protection | ||||
Over Temperature |
Auto Shutdown at 120 ℃ |
|||
Short Circuit |
Auto Shutdown |
|||
Overload |
Auto Shutdown |
|||
Over / Under Voltage |
Auto Shutdown |
Specification, Dimensions and Weight
Model |
Unit PCS |
Device Size MM |
Package Size MM |
G.W. KGS |
SDW-500 |
4 |
280*180*140 |
455*330*350 |
19.20 |
SDW-1000 |
4 |
280*180*140 |
455*330*350 |
25.84 |
SDW-1500 |
4 |
280*180*140 |
455*330*350 |
28.50 |
SDW-2000 |
4 |
280*180*140 |
455*330*350 |
32.00 |
SDW-3000 |
4 |
385*265*155 |
445*330*210 |
13.26 |
SDW-5000 |
2 |
385*265*155 |
445*330*210 |
16.80 |
SDW-8000 |
1 |
440*300*175 |
535*395*270 |
24.95 |
SDW-10000 |
1 |
440*300*175 |
535*395*270 |
28.55 |
General
|
Application
They are suitable in Computer, Test equipment, Light system, Safe alarm system, Ray equipment, Medical equipment, Copy machine, Stereo equipment, Numerical control machine tools, Industrial automation equipment, Color and drying equipment, Test equipment, Hi-Fi equipment etc
Q 1. what's the payment terms Money Gram Q 2. how's the delivery time Q 3. tell me the standard of package wooden case for protection Q 4. What kind of material of transformer copper with aluminum. It depends on your requirment. In fact, those two have no difference if normal work well. Only except the long life. Copper is better and also higher price. For relay type stabilizer, we use toroid coils, the material is aluminum comparing with square coils, toroid coils with high efficiency office or other office to apply for this certificate Q 6. Would you accept to use our logo Q 7. We want to know month capacity month capacity can reach near 10000pcs and big capacity near 2000pcs Q 8. Where is your market Q 9. What kind of certificate you have |
We can offer sample for test before order, but customer will have to pay the sample charger and freight charge
We will refund you the sample cost when order confirmed.
