product factory price 12kva wall mount relay control single phase 220v ac automatic electronic voltage stabilizer 10kw for home-41

RELAY TYPE AVR

Home >  Products >  VOLTAGE REGULATOR(AVR) >  RELAY TYPE AVR

Factory Price 12Kva Wall Mount Relay Control Single Phase 220V Ac Automatic Electronic Voltage Stabilizer 10Kw For Home


Description

This is actually dependable for the house, look absolutely no further when compared with HEYA Factory Price 12Kva Wall Mount Relay Control Single Phase 220V Ac Automatic Electronic Voltage Stabilizer if you should be looking for an appropriate and voltage. Developed to offer constant and electricity  dependable this process ideal functional any home that experiences power modifications or voltage falls. Among the list of choices being key have this voltage specific is its wall surface area mount design. This could make sure it  is an task install easy your house, and yes it's going to probably perhaps not occupy area this is  and truly just too much. Moreover, the relay control means that the voltage remains stable, at a degree known is consistent is constant no real matter what the alterations in to your power. The HEYA Factory Price 12Kva Wall Mount Relay Control Single Phase 220V Ac Automatic Electronic Voltage Stabilizer may additionally be exceedingly easy to take advantage of. Whenever its set up, what you ought to do is link it in and turn it in. It shall instantly adjust the voltage to ensure your products or services are finding a amount this is  constant of. This voltage stabilizer had been created for lots as much as 10kW, rendering it perfect for numerous households with regards to specifications. It possesses precision voltage high might be modified to in only a number of ±2%, ensuring you will need in terms of products you should have the voltage exact


1_01Factory Price 12Kva Wall Mount Relay Control Single Phase 220V Ac Automatic Electronic Voltage Stabilizer 10Kw For Home




Technical Parameters

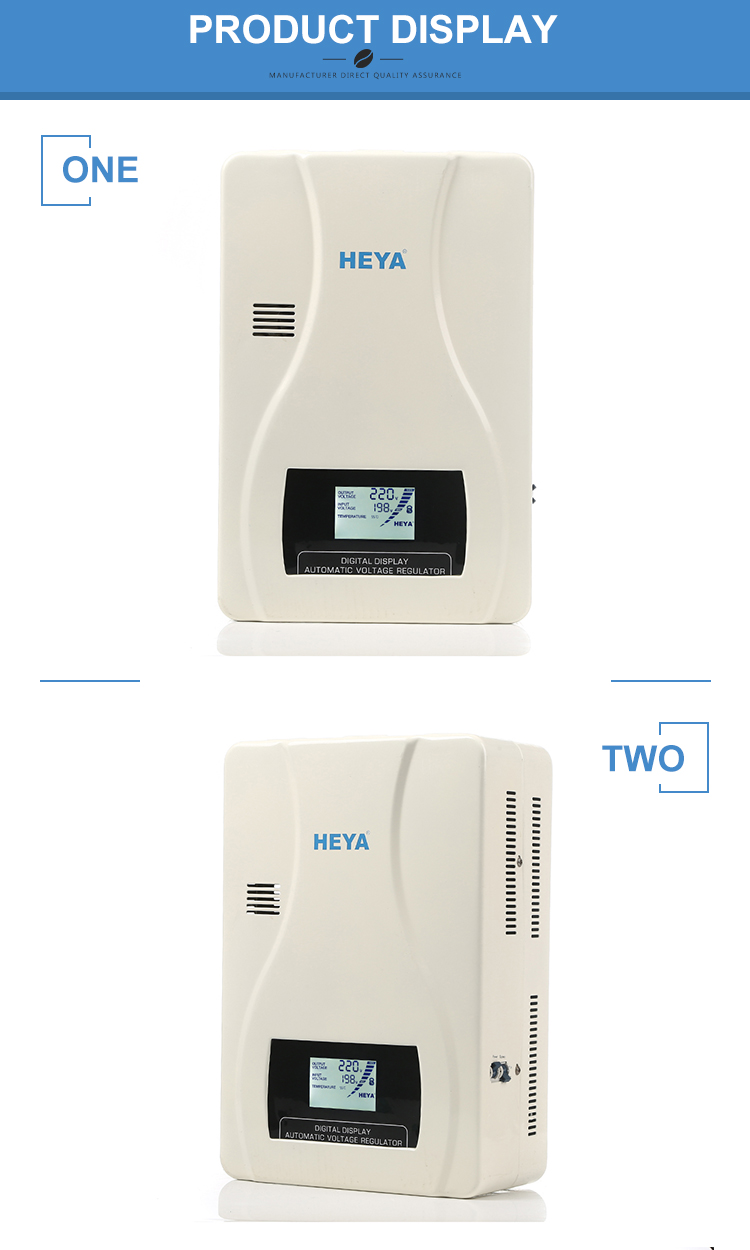

SRWII White_01.jpg

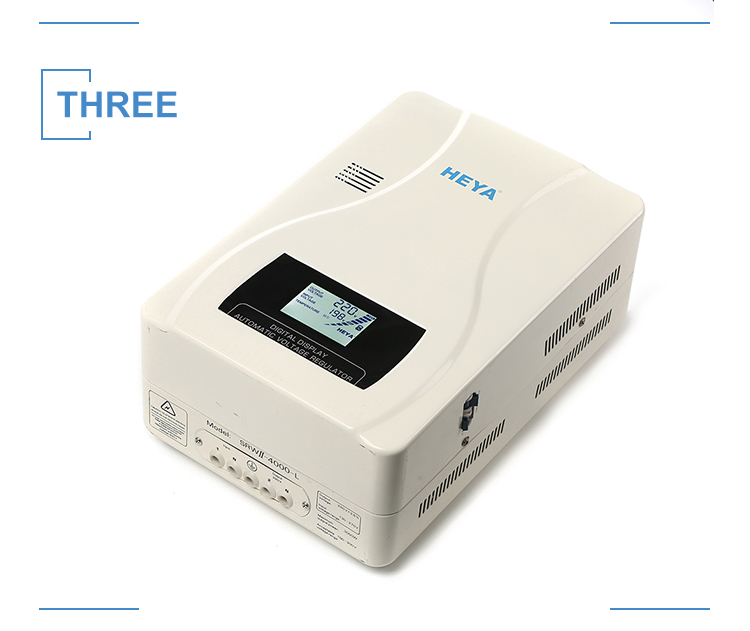

SRWII White_02.jpg



Model SRWII-4000-L SRWII-6000-L SRWII-9000-L SRWII-12000-L
Technology Relay Control System+Micro compute programed control+control algorithm relay"Cross zero"
LCD Display Color According to customer requirement
Info Input Voltage/Output Voltage/Load Usage/Time Delay/Normal Working/Protection
Protection Over Voltage Output voltage ≥245v±4
Low Voltage Output voltage ≤185V±4
Over Loading more than 110%
Over Temperture 110°C±10°C
Delay time 8 second
Lauguage English/Russia/Chinese
Input Voltage AC110-275V
Output Voltage 220V±8%
Frequency 50Hz/60Hz
Phase Single Phase
Efficiency ≥90%
Ambient Temperature -15°C~45°C
Relative Humidity
Waveform distortion no additional wave form distortion
Insulating Resistance Normally more than 2MΩ
Power 3000W 5000W 7000W 10000W
Packing Size(mm) 445×330×210 445×330×210 445×330×210 535×395×2270
Packing(Pcs) 1 1 1 1
G. W. (Kg) 13.00 16.60 18.40 21.20



Product Description

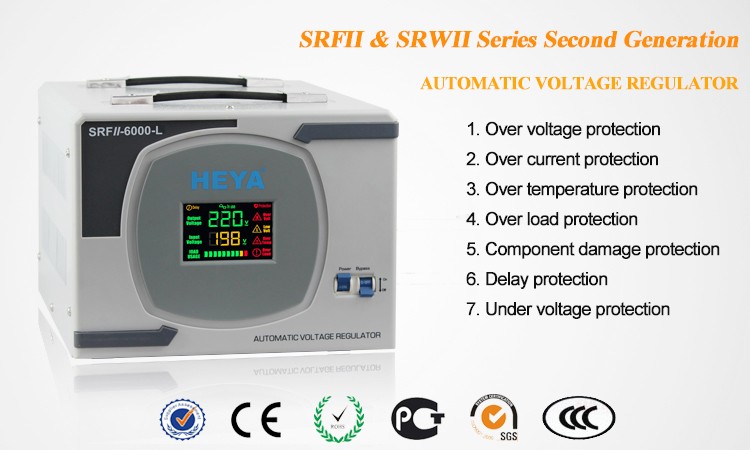

SRFII Regulator Banner.jpg

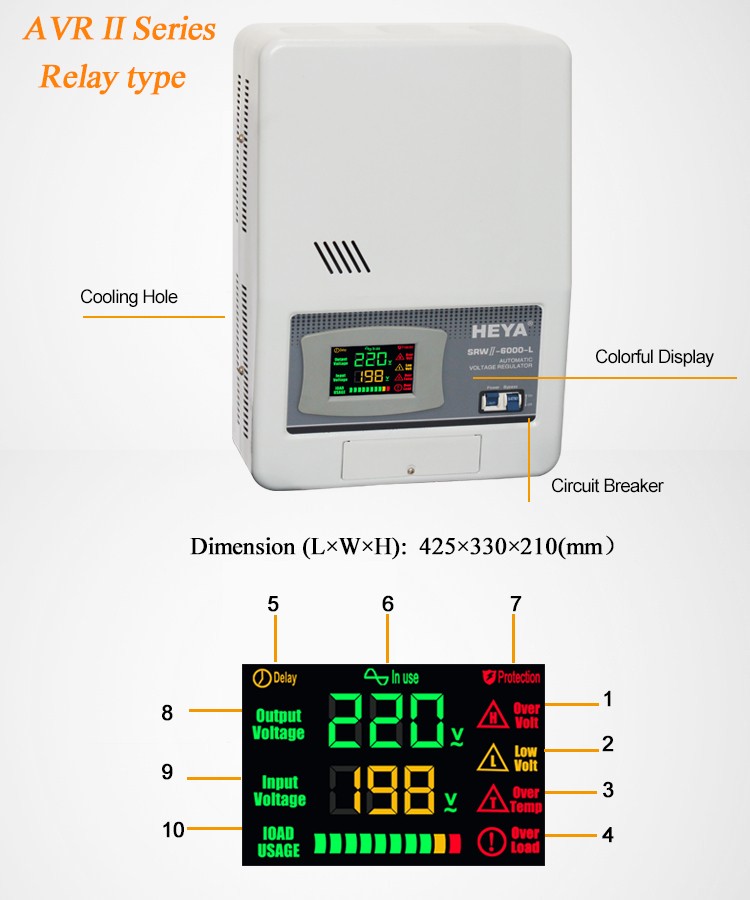

AVR SRWII Regulator 1.jpg

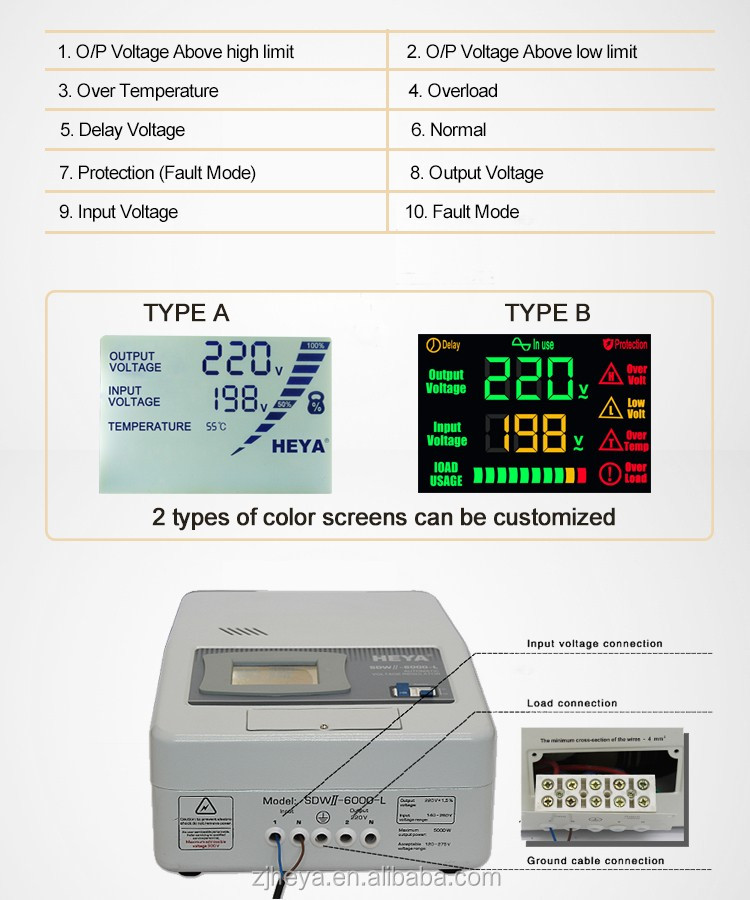

AVR SRWII Regulator 2.jpg

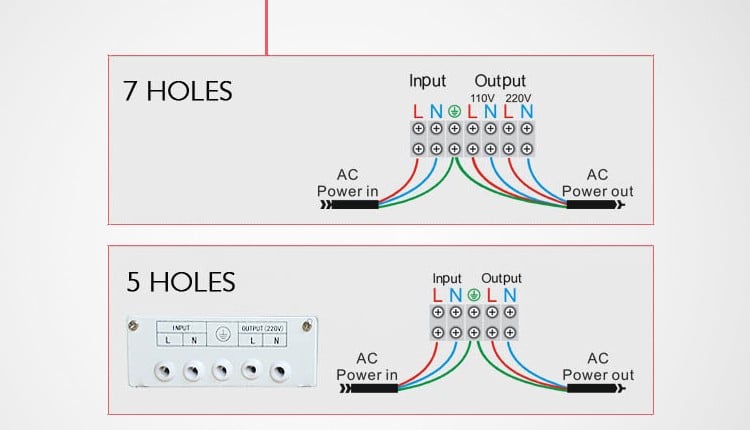

AVR SRFII Regulator 4.jpg



SRWII Series LCD Relay Type Full Automatic Stabilizer

 SRFII&SRWII series second generation relay type intelligent LCD display full automatic AC voltage regulator is a brand-new concept product.

  It is on the basis of years of producing relay type full automatic ac voltage regulator, after improvement, innovation and perfection of design with low energy consumption, over-voltage/current/power/temperature protection, short circuit protection etc.

 ♦ And sets many new technologies such as selective delay, impact resistant, multi -function LCD display, energy saving and environmental protection.

 ♦ It adopts the international advanced technology and intelligent CPU centralized control technology, improved the disadvantages of the previous relay type voltage regulator.

  Compared with the original ones, the more excellent quality, function is more perfect, more luxurious and novel appearance. This series of products we have applied for a number of patents.



   APPLICATIONS

Mainly used in Coumpter, office equipment, Test equipment, Light system, Safe alarm system, Ray equipment, Medical equipment, Copymachine, Numerical control machine tools, Industrial automation equipment, Color and drying equipment, Hi-Fi equipment etc.



 The advantage of Factory Price 12Kva Wall Mount Relay Control Single Phase 220V Ac Automatic Electronic Voltage Stabilizer 10Kw For Home SRWII -12000va:



1. Wide Input voltage: AC110~275V or customize

2.  High technology: Programmed control computerized

3. Number of relays: 5+1

4. Fashion design: LCD display which can show all protection functions.

5. Quality insurance: Main spare parts made by ourselves, for example, transformer, PCB.

6. Perfect protection function: Over/low voltage protection, over-heat/load protection, short circuit protection.

7. Option Function: with voltage regulator and mains supply two kind output voltage choice function, in mains supply relatively stable season, the user can put voltage stabilizer in mains supply state, there is no power consumption, it is economic and convenient.

8. High efficiency: More than 95%





Related Products

Factory Price 12Kva Wall Mount Relay Control Single Phase 220V Ac Automatic Electronic Voltage Stabilizer 10Kw For Home details





About us

6

7

8

9



1_11

FAQ



Q 1. What's the payment term?

A. We accept TT, 30% deposit and 70% balance agaisnt copy of BL.



Q 2. How's the delivery time?

A. usually it will take about 10-25 days for production. For sample usually in 1 week.



Q 3. Tell me the standard of package?
A. For the small capacity, color box as inner package and carton as delivery package.
For big capacity, use strong wooden case for protection.

Q 4. What kind of material of transformer?
A. For servo type stabilizer, we have two types, one 100% copper and the other is copper with aluminum. It depends on your requirment. In fact, those two have no difference if normal work well. Only except the longlife. Copper is better and also higer price. For relay type stabilizer, we use toroid coils, the material is aluminum. comparing with square coils, toriod coils with high efficiency.

Q 5. Could you offer Form A or C/O?
A. It totally not a problem. We can prepare relative documents to forgin affairs office or other office to apply for this certificate.

Q 6. Would you accept to use our logo?
A. Our logo is HEYA. If your order has good quantity, it absolute no problem to do OEM.
But you use our logo HEYA will be high appreciated.

Q 7. We want to know month capacity.
A. It depends on which model. For example for relay type small capacity, month capacity can reach near 10000pcs and big capacity near 2000pcs.

Q 8. Where is your market?
A. Our products are popular in North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europeand so on. Some of them are our regular customers and some of them are developing. We hope you can join us and make mutural benifit from our cooperation.

Q 9. What kind of certificate you have?
A. Our company already obtained ISO9001, BV, EAC, SONCAP, CE, PCT, SGS, design and technical patents certificates.
