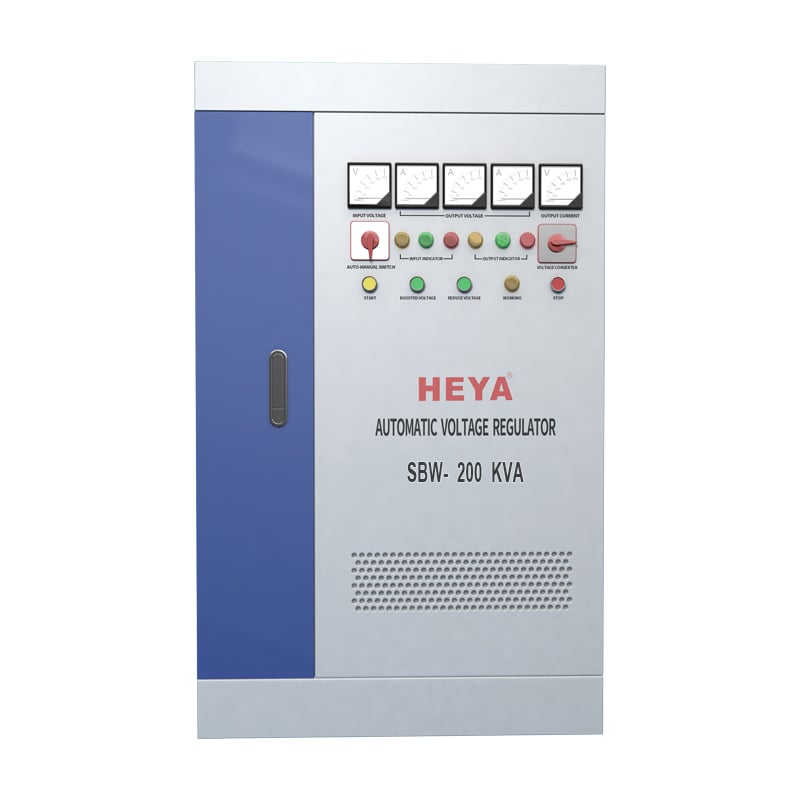

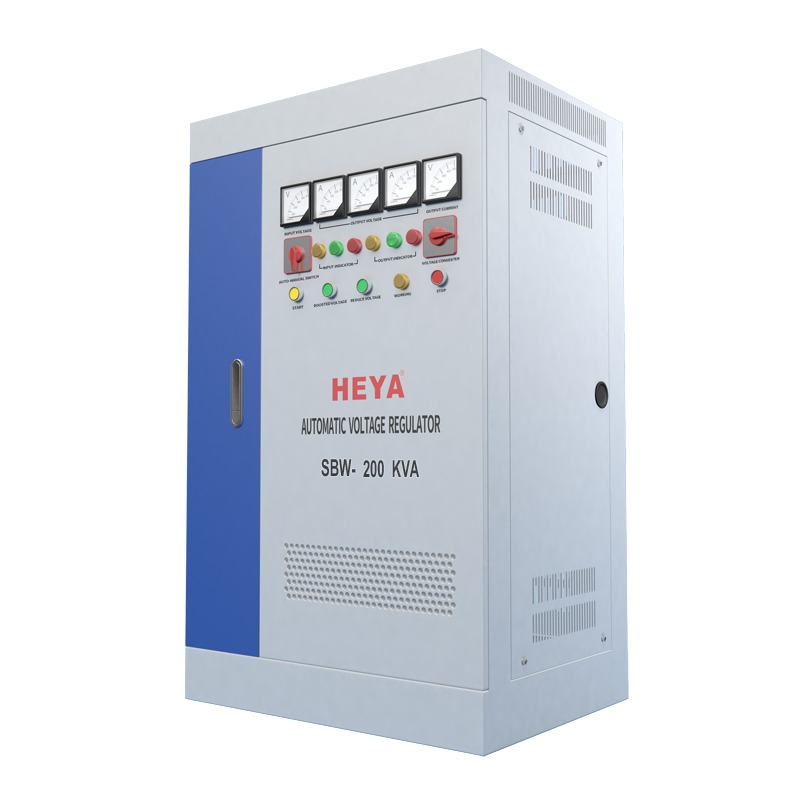

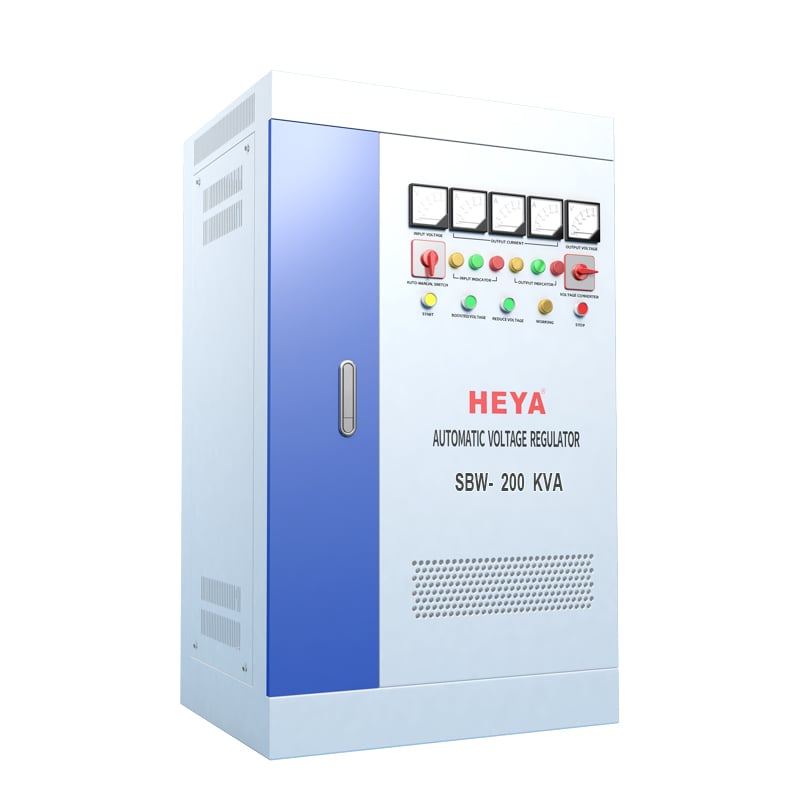

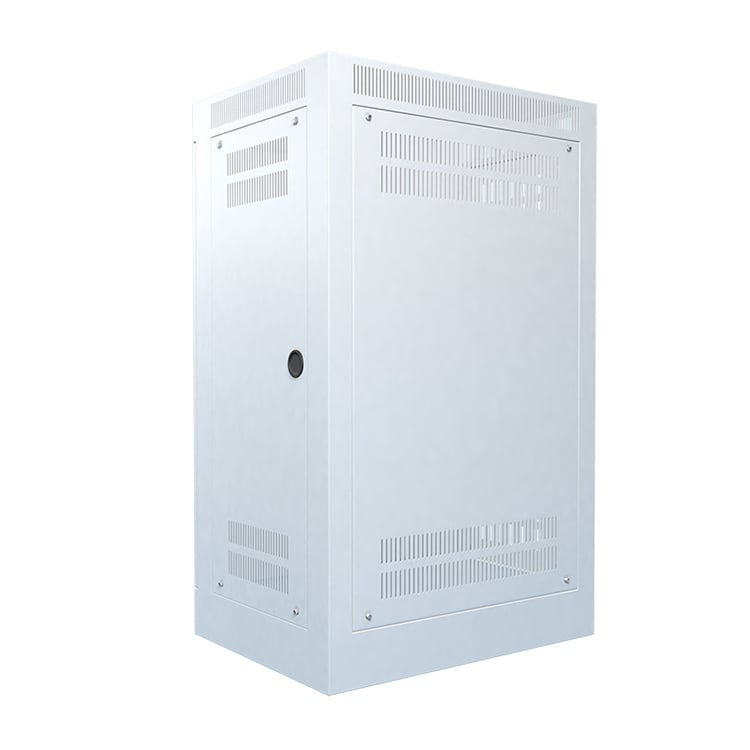

Factory Direct Sale SBW-200KVA 3 Phase 380V AC Automatic Voltage Regulator/Stabilizer Single Phase 50Hz Frequency for SVc Use
Description
Phase |
Three-phase four wire system |
Input voltage |
Phase voltage:220V+-20%(176-246V Line voltage:380+-20%(304-456V
|
Output voltage |
Phase voltage:220V+-2-5% adjustable;Line voltage:380V |
Output deviance |
380V+-1-5% adjustable |
Frequency |
50Hz/60Hz |
Efficiency |
>=95% |
Response time |
|
Ambient temperature |
-10℃~40℃ |
Insulation resistance |
>=5MΩ |
Waveform distortion |
Non additional waveform distortion |
Protection functions |
Overvoltage, overcurrent, phase shortage, phase-sequence and mechanical failure |
Over-load capacity |
1min. at the current of 2 times |
Electricity-resistance strength |
Power frequency sinusoidal is 200V AC without breakdown and flash over when it lasts 1 min |
Model(KVA |
Rated Power(VA |
Packing Sizes(CM |
PCS/Carton |
SBW-30 |
30000 |
69*85*151 |
1 |
SBW-50 |
50000 |
69*85*151 |
1 |
SBW-60 |
60000 |
69*85*151 |
1 |
SBW-80 |
80000 |
75*95*161 |
1 |
SBW-100 |
100000 |
75*95*161 |
1 |
SBW-120 |
120000 |
75*95*161 |
1 |
SBW-150 |
150000 |
83*107*183 |
1 |
SBW-180 |
180000 |
83*107*183 |
1 |
SBW-200 |
200000 |
83*107*183 |
1 |
SBW-225 |
225000 |
95*115*210 |
1 |
SBW-250 |
250000 |
95*115*210 |
1 |
SBW-300 |
300000 |
110*138*220 |
1 |
SBW-320 |
320000 |
110*138*220 |
1 |
SBW-350 |
350000 |
110*138*220 |
1 |
SBW-400 |
400000 |
110*138*220 |
1 |
SBW-450 |
450000 |
110*138*220 |
1 |
SBW-500 |
500000 |
120*140*220 |
1 |
SBW-600 |
600000 |
100*80*210 |
1 |
SBW-800 |
800000 |
85*100*220 |
1 |
SBW-1000 |
1000000 |
85*100*220 |
1 |
A. We accept TT, 30% deposit and 70% balance against copy of BL
A. usually it will take about 10-25 days for production. For sample usually in 1 week
Q 3. Tell me the standard of package
A. For the small capacity, color box as inner package and carton as delivery package. For big capacity, use strong wooden case for protection
Q 4. What kind of material of transformer
A. For servo type stabilizer, we have two types, one 100% copper and the other is copper with aluminum. It depends on your requirment. In fact, those two have no difference if normal work well. Only except the long life. Copper is better and also higher price. For relay type stabilizer, we use to rod coils, the material is aluminum. comparing with square coils, to rod coils with high efficiency
Q 5. Could you offer Form A or C/O
A. It totally not a problem. We can prepare relative documents to forging affairs office or other office to apply for this certificate
Q 6. Would you accept to use our logo
A. Our logo is HEYA. If your order has good quantity, it absolute no problem to do OEM. But you use our logo HEYA will be high appreciated
Q 7. We want to know month capacity
A. It depends on which model. For example for relay type small capacity, month capacity can reach near 10000pcs and big capacity near 2000pcs
Q 8. Where is your market
Oceania, Mid East, Eastern Asia, Western Europeand so on. Some of them are our regular customers and some of them are developing. We hope you can join us and make mutual benefit from our cooperation
Q 9. what kind of certificate you have
A. Our company already obtained CE, ISO9001, BV, EAC, SONCAP, CE, PCT, SGS, design and technical patents certificates
HEYA
The Factory Direct Sale SBW-200KVA 3 Phase 380V AC Automatic Voltage Regulator/Stabilizer Single Phase 50Hz Frequency for SVC Use is a high-quality product designed to help regulate and stabilize voltage levels in your electrical system. Perfect for use in homes offices factories and other industrial settings where voltage fluctuations can cause damage to appliances and equipment
Designed to work with both single and three-phase systems which makes it a versatile option for many different applications. The HEYA operates on a frequency of 50Hz which is the standard frequency for most electrical systems worldwide. A reliable and consistent choice for businesses and homeowners alike
With a maximum capacity of 200KVA the HEYA SBW-200KVA. Capable of handling large loads with ease. Automatically monitors voltage levels and adjusts them as necessary to keep your electrical system running smoothly. You will experience fewer interruptions and equipment failures due to voltage fluctuations which can save you time and money in the long run
Built to withstand harsh environmental conditions including extreme temperatures humidity and voltage surges. Constructed using high-quality materials which ensures that it will last for years without requiring frequent maintenance or repairs
Easy to install and use which makes it a great choice for both professionals and DIY enthusiasts. Easy to transport and install in tight spaces. Its intuitive interface allows users to quickly adjust voltage levels and monitor system performance which makes it a valuable tool for any business or homeowner
Get this today and be amazed
