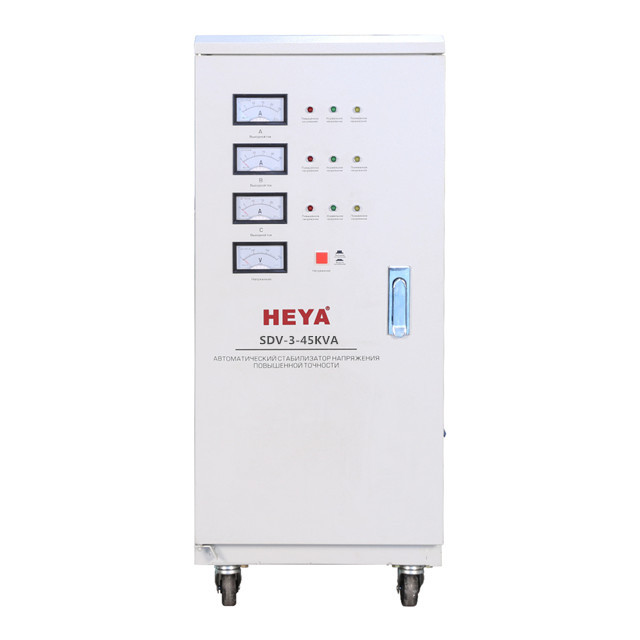

Avr SVC 45kva voltage stabilizer 3 phase automatic voltage regulator/servo motor voltage stabilizer


Description

Avr SVC 45kva voltage stabilizer 3 phase automatic voltage regulator/servo motor voltage stabilizer

3 phase automatic voltage regulator

Technical Parameters
Model SVC-3- 9000VA SVC-3-15000VA SVC-3-20000VA SVC-3-30000VA SVC-3-60000VA SVC-3-90000VA
Technology Servo Motor Control System +Micro compute programed control
Meter Display Color According to customer requirement
Info Input Voltage/Output Voltage/Load Usage/Time Delay/Normal Working/Protection
Protection Over Voltage Output voltage ≥420V±4V
Low Voltage Output voltage ≤325V±4V
Over Loading more than 120%
Over Temperture 120°C±10°C
Delay time 8 second
Lauguage English/Russia/Chinese
Input Voltage AC 240-450V
Output Voltage 380V±2% or 380V±4% Adjustable
Frequency 50Hz/60Hz
Phase Three Phase
Efficiency ≥90%
Ambient Temperature -15°C~45°C
Relative Humidity <95%<>
Waveform distortion no additional wave form distortion
Insulating Resistance Normally more than 2MΩ
Power 9000W 15000W 20000W 30000W 48000W 72000W
Packing Sizemm 454×414×730 485×455×910 535×515×973 535×515×973 810×610×1345 810×610×1345
Packing Pcs 1 1 1 1 1 1
G.W. Kg 44.00 59.00 86.00 91.00 215.00 245.00
Product Description

 O3 45KVA.jpgO6 15KVA.jpgO2 15KVA.jpgO5 15KVA.jpg

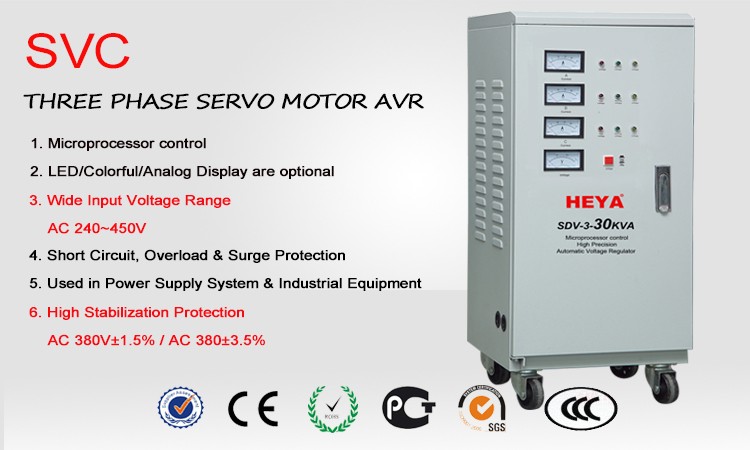

SVC Series Three Phase AC Voltage Regulator

SVC series three phase servo type high accuracy full automatic AC voltage regulator adopts the international advanced technology and intelligent CPU centralized control technology

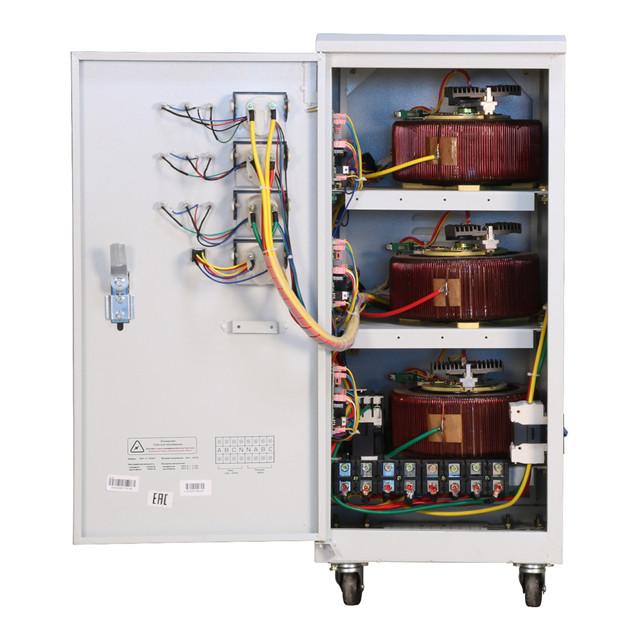

 It has beautiful design,easy to moving,large capacity, etc. which is composed of servo motor, control circuit, compensator

 It has advantages of small volume, light weight, high efficiency, high precision ,wide voltage stabilizing range, no waveform distortion etc. All products are provided with over-voltage and under-voltage protection, delay protection, error protection and voltage two-way indication, which make the function of the product more perfect and reliable

 This product is an ideal stabilized voltage supply, widely used in any locations requiring electricity and ensures your power device can run normally



   APPLICATIONS

Mainly used in Coumpter, office equipmentTest equipmentLight systemSafe alarm systemRay equipmentMedical  equipmentCopy machineNumerical control machine toolsIndustrial automation equipmentColor and drying equipmentHi-Fi equipment etc



 The advantage of  3 phase avr SVC 45KVA automatic voltage regulators/servo motor voltage stabilizer SVC-3-45KVA :



1..Wide Input voltage: three phase AC 240~450V

2. High technology: Programmed control computerized

3. The high accuracy of the output voltage 380 V ± 1.5%

4. Quality insurance: Main spare parts made by ourselves, for example, transformer, PCB

5. Perfect protection function: Over/low voltage protection, over-heat/load protection, short circuit protection

6. High efficiency: More than 95%



Related Products

 Avr SVC 45kva voltage stabilizer 3 phase automatic voltage regulator/servo motor voltage stabilizer factory1_06.jpg

About us

6789

 1_11

FAQ



Q 1. What's the payment term

A. We accept TT,30% deposit and 70% balance agaisnt copy of BL



Q 2. How's the delivery time

A. usually it will take about 10-25 days for production.For sample usually in 1 week



Q 3. Tell me the standard of package
A. For the small capacity, color box as inner package and carton as delivery package
For big capacity, use strong wooden case for protection

Q 4. What kind of material of transformer
A. For servo type stabilizer,we have two types, one 100% copper and the other is copper with aluminum.It depends on your requirment. In fact,those two have no difference if normal work well. Only except the longlife. Copper is better and also higer price.For relay type stabilizer,we use toroid coils, the material is aluminum. comparing with square coils,toriod coils with high efficiency

Q 5.Could you offer Form A or C/O
A. It totally not a problem. We can prepare relative documents to forgin affairs office or other office to apply for this certificate

Q 6.Would you accept to use our logo
A.Our logo is HEYA.If your order has good quantity,it absolute no problem to do OEM
But you use our logo HEYA will be high appreciated

Q 7.We want to know month capacity
A. It depends on which model.For example for relay type small capacity , month capacity can reach near 10000pcs and big capacity near 2000pcs

Q 8.Where is your market
A. Our products are popular in North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europeand so on.Some of them are our regular customers and some of them are developing. We hope you can join us and make mutural benifit from our cooperation

Q 9. What kind of certificate you have
A. Our company already obtained ISO9001, BV, EAC, SONCAP, CE, PCT, SGS,design and technical patents certificates








































HEYA’s Avr SVC 45kva voltage stabilizer is an innovative and top-quality product that offers reliable voltage regulation for industrial and commercial purposes. The voltage regulator was designed specifically for heavy-duty environments and can be used for various applications that require stable power supply.



It provides a three-phase automatic voltage regulator which ensures accurate voltage regulation to rectify any fluctuations in the power supply and provide a stable voltage output. This feature makes it ideal for use in various industrial environments like data centers, manufacturing plants, hospitals, and commercial buildings.



It was made using high-quality materials that are reliable and resistant to wear and tear. Moreover, it is highly efficient, consuming less power and saving energy costs. Additionally, it is eco-friendly, promising no harm to the environment and consumes less power than the other voltage regulators in its category.



It features servo motor control which enhances the precision of the device and reduces the time taken for voltage stabilization. The product’s servo motor function helps to detect voltage fluctuations instantly and automatically adjusts the output voltage to maintain a stable voltage level.



It was designed with short circuit protection overload protection and other safety features that protect the device against any voltage fluctuations and power surges. With these safety measures in place, business owners can be assured that their equipment and machines will be adequately protected with the use of this voltage regulator.



Easy to use and maintain, it comes with an LED display that offers real-time monitoring of the voltage level which ensures that you are always aware of the status of the voltage stabilization. The product is an innovation in precision voltage stabilization, offering high functionality and reliability to its users.
