AVR 10KVA Single Phase 220V AVR Digital 10KW 8KW Regulador De Voltaje Automatic Regulators Stabilizers
Description
Technology |
Relay type & Digital CPU Control |
|||
Transformer |
Transformer |
|||

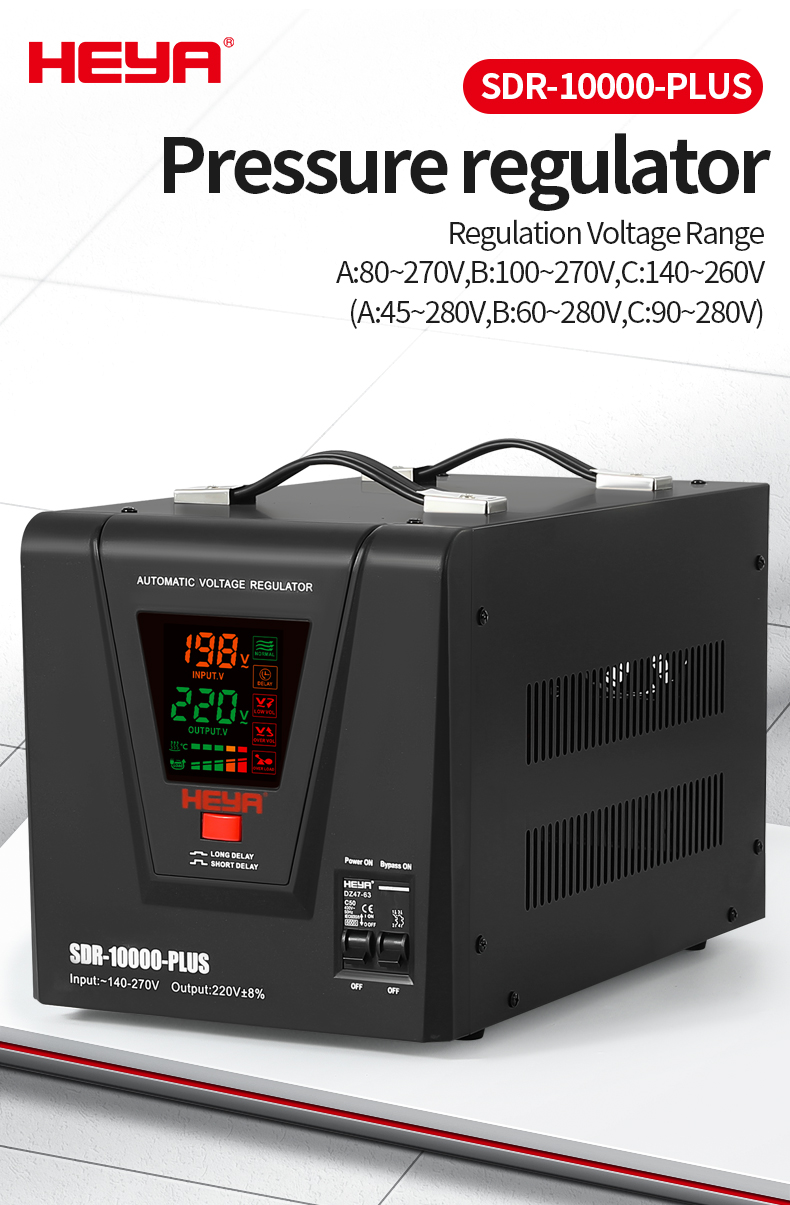

Input voltage |
80-270V,100-270V,140-260V / 45-280V,60-280V,90-280V |
|||
Output voltage |
220V±8%, 220V±10% |
|||
Frequency |
50-60Hz |
|||
Phase |
Single-Phase |
|||

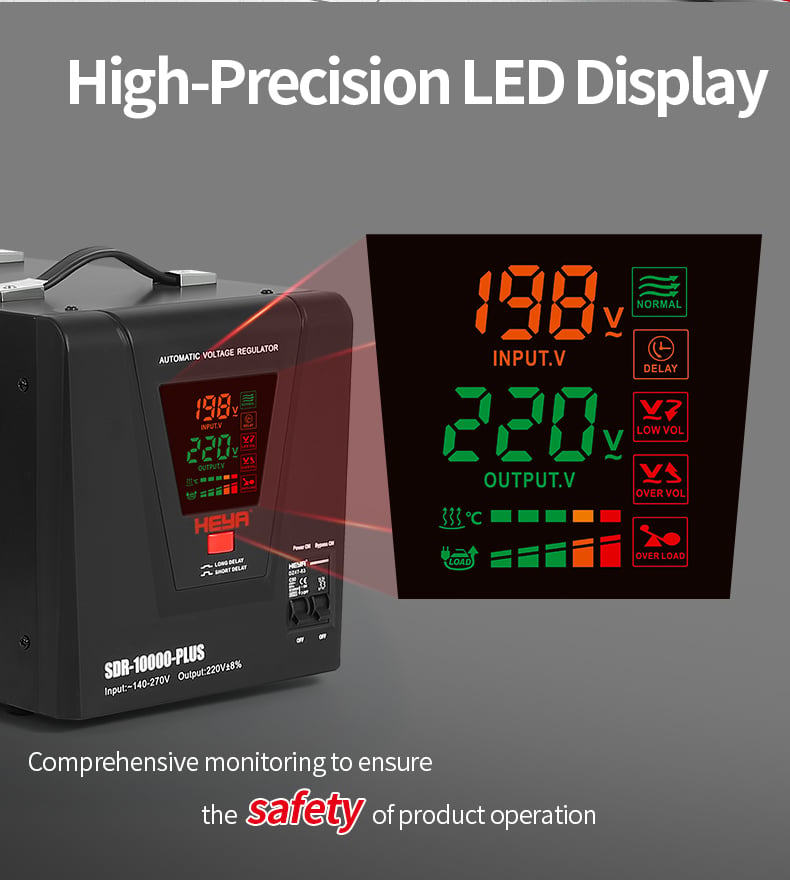

Display |
Full information graphic LED display |
|||

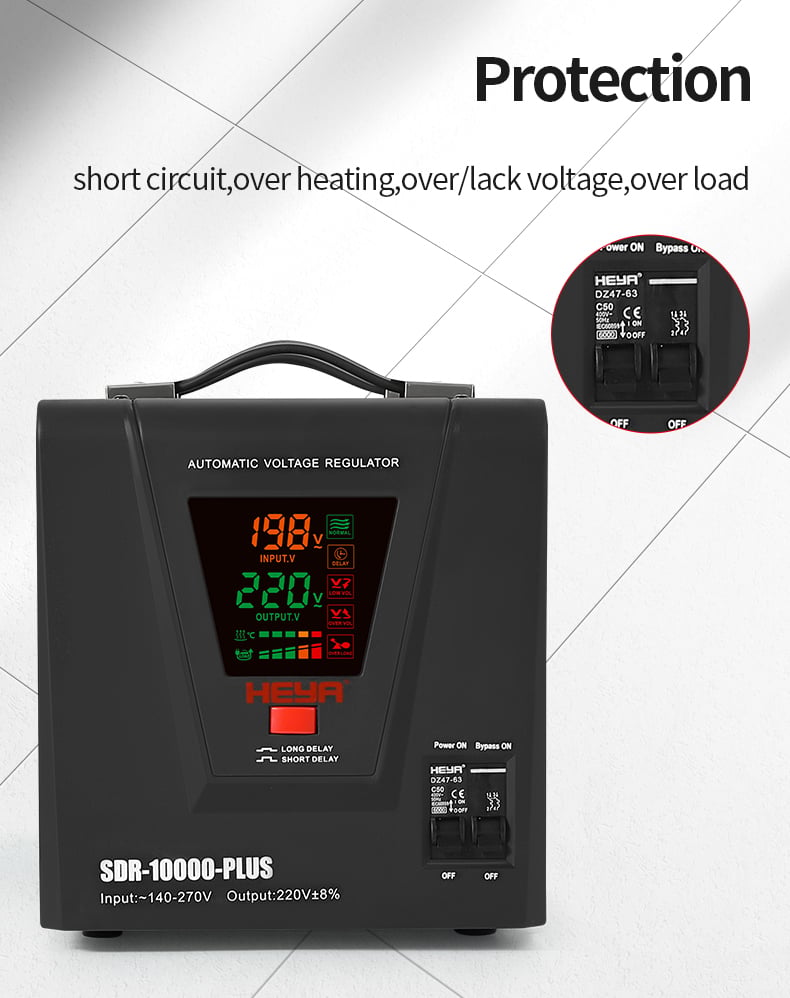

Protection |
Over voltage output |
252V |
||
Low voltage output |
||||
Over Temperature |
||||
Short Circuit |
||||
Overload |
||||
Delaying |
3S/180S |
|||

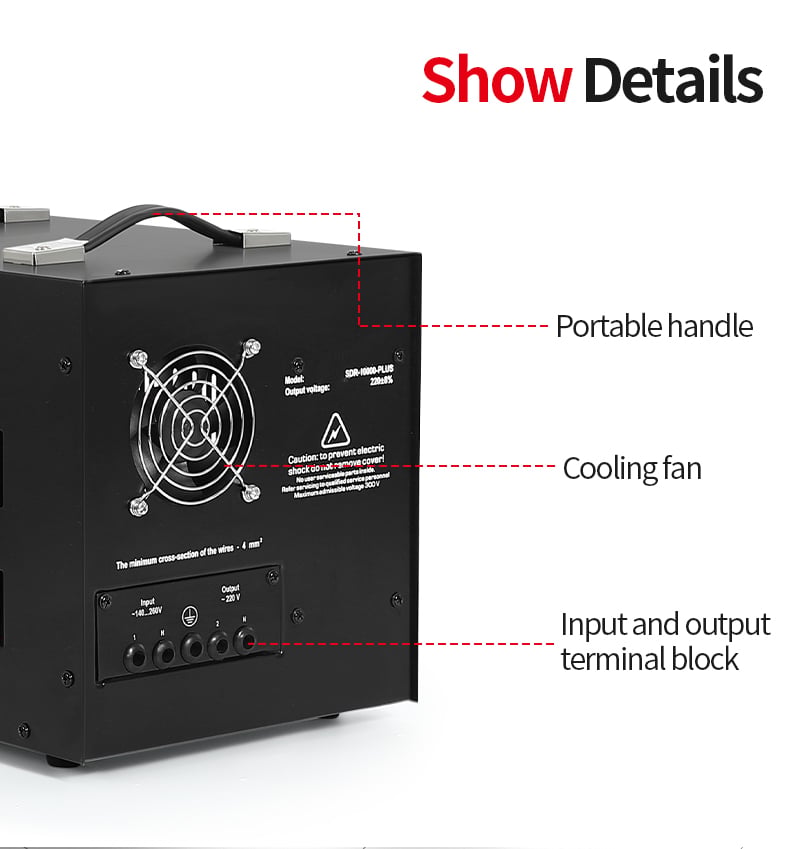

Cooling System |
Vents/Fan Automatic Start up at 60°C |
|||
Connection Type-IN |
0.5~3KVA Power cord with plug, 5~20KVA Input terminal block |
|||
Connection Type-OUT |
0.5-3KVA Output socket, 5~20KVA Output terminal block |
|||
Adjust time |
||||
Ambient temperature |
-10~+45℃ |
|||
Relative humidity |
||||
Wave form distortion |
No additional wave form distortion |
|||
Efficiency |
＞98% |
|||
PACKING INFORMATION | ||||
Model |
Power Output VA |
Qty/Carton pcs |
Product Size MM /PC |
Carton Size (MM)/CTN |
SDR-500-PLUS |
500VA |
8 |
210*110*150 |
495*280*350 |
SDR-1000-PLUS |
1000VA |
8 |
210*110*150 |
495*280*350 |
SDR-2000-PLUS |
2000VA |
4 |
240*150*185 |
375*305*435 |
SDR-3000-PLUS |
3000VA |
4 |
240*150*185 |
375*305*435 |
SDR-5000-PLUS |
5000VA |
2 |
340*220*250 |
515*420*300 |

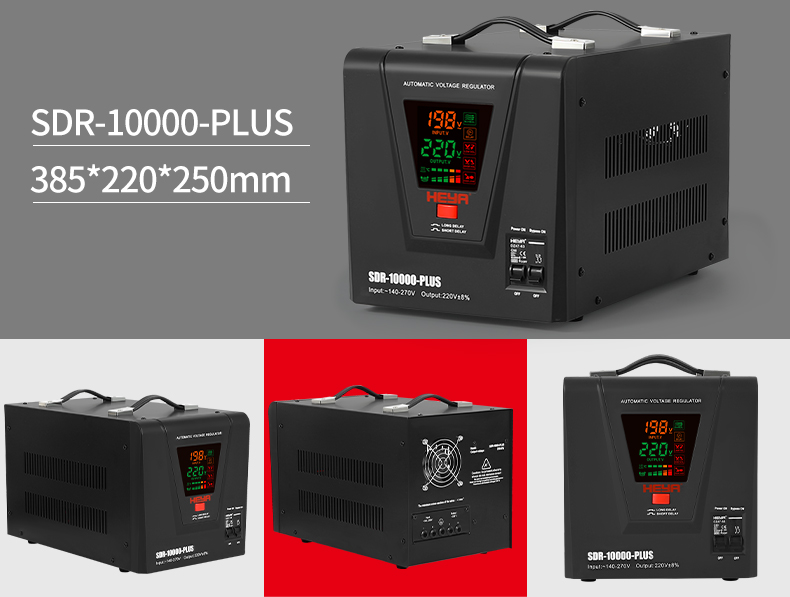

SDR-10000-PLUS |
10000VA |
1 |
385*220*250 |
460*265*300 |
SDR-12000-PLUS |
12000VA |
1 |
385*220*250 |
460*265*300 |
SRV-15000-PLUS |
15000VA |
1 |
310*270*560 |
410*360*650 |
SRV-20000-PLUS |
20000VA |
1 |
360*340*620 |
450*430*725 |
HEYA
AVR 10KVA Single Phase 220V AVR Digital 10KW 8KW Regulador De Voltaje Automatic Regulators Stabilizers could be the solutions that are perfect anybody who is voltage this is certainly experiencing. This system is actually designed to regulate the production voltage and work out sure a charged power supply is stable.
This will probably handle as much as 10 kilo-volts of power, having a production is single-phase of. It is a regulator is uses which are electronic level technology to improve the output voltage in just a ranges would work with many kinds of gadgets.
Possesses an 8KW and rating is and thus is 10KW could handle a wider range of devices, including household and workplace gear. By using this product, you are able to safeguards your devices from voltage modifications which will damage your devices or also lead them to become malfunction.
Can also be full of a voltage legislation feature is automatic. This permits this method to alter the production automatically voltage on the basis of the load it really keeping. This particular aspect helps to ensure that and even though there was an improvement that unforeseen the stress being carried, your merchandise will nevertheless get a voltages supply is stable.
An easy task to install and run. It comes down having an LCD display is presents are electronic production voltage as well as other info is crucial. The display additionally shows any caution communications, so that you can address any dilemmas immediately.
After that your HEYA's AVR 10KVA Single Phase 220V AVR Digital 10KW 8KW Regulador De Voltaje Automatic Regulators Stabilizers will be the perfect products you should be searching for a dependable and efficient voltage regulator that will protect your devices from voltage fluctuations for you if.
