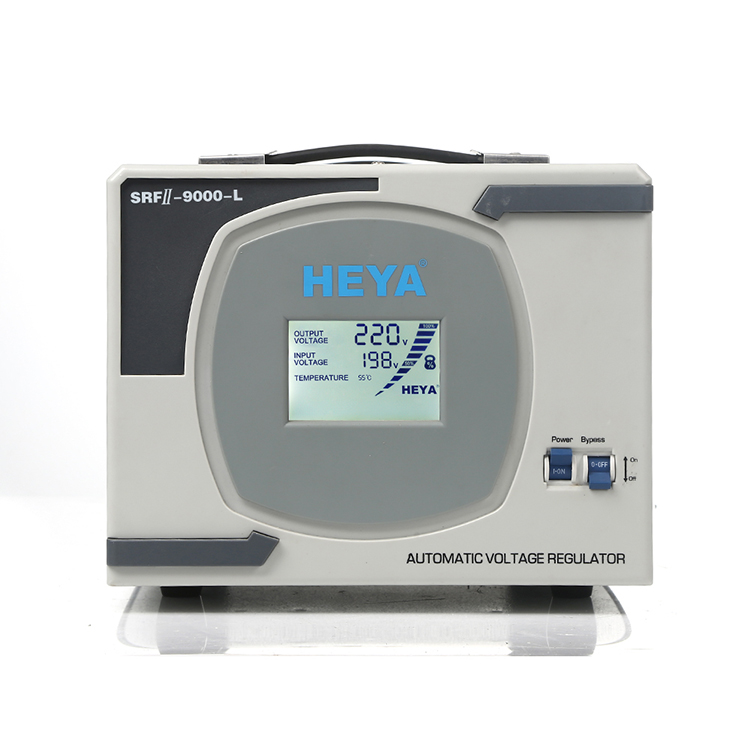

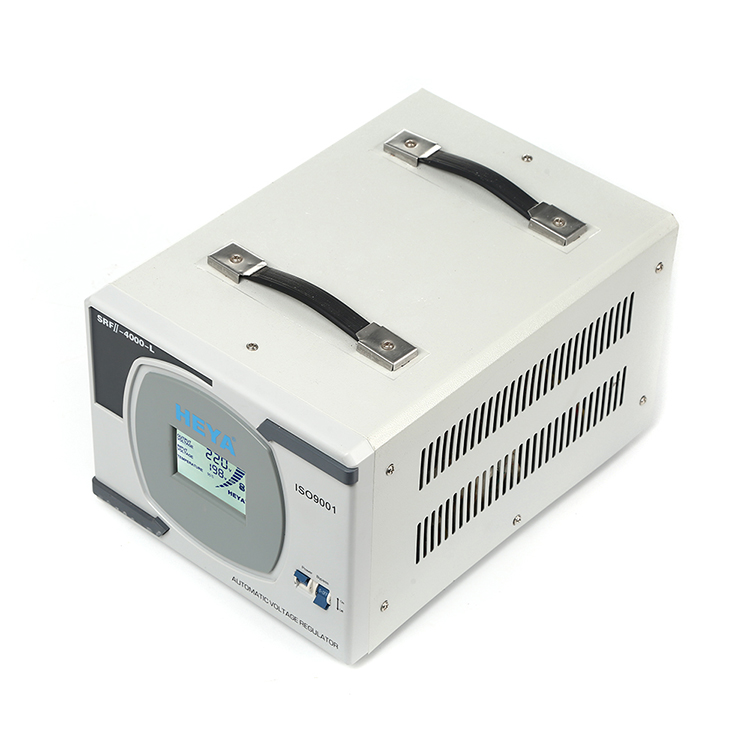

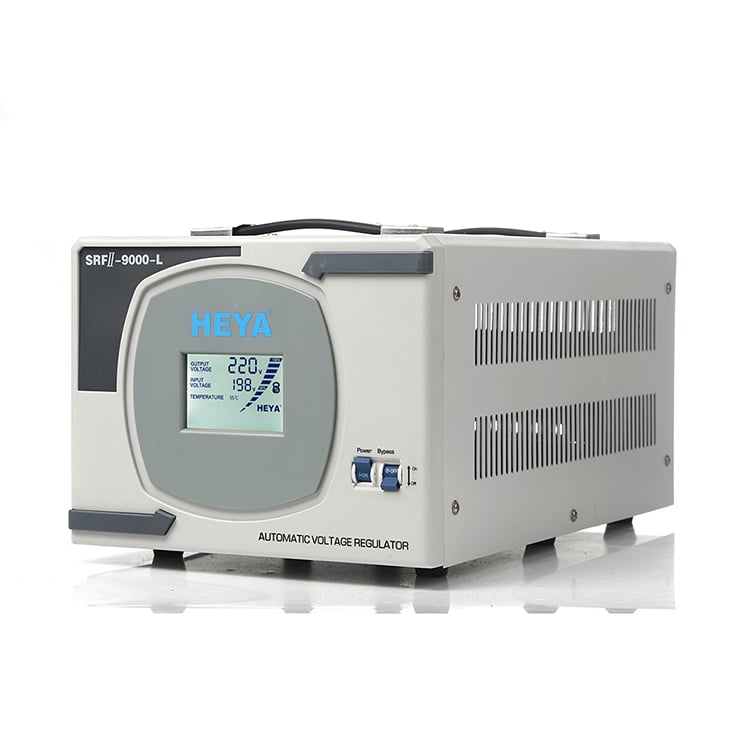

9KVA 10KVA AVR 110-275V Input Single Phase 220V Automatic Voltage Regulators Stabilizers 7KW 8KW
Description
Model |
SRFII-4000-L |
SRFII-6000-L |
SRFII-9000-L |
SRFII-12000-L |
||||||
Nominal Power |
4000VA |
6000VA |
9000VA |
12000VA |
||||||
Power Factor |
0.6-1.0 |
|||||||||
Input |
||||||||||
Operating Voltage Range |
95~285V |
|||||||||
Regulation Voltage Range |
110~275V |
|||||||||
Frequency |
50HZ |
|||||||||

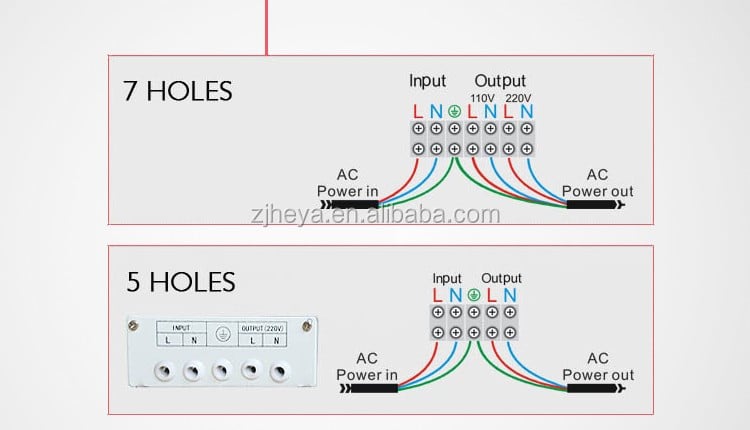

Connection Type |
Input terminal block |
|||||||||
Output |
||||||||||
Operating Voltage |
180~255V |
|||||||||
High Cut Voltage |
255V |
|||||||||
Low Cut Voltage |
180V |
|||||||||
Safety Cycle |
8 Seconds / 180 Seconds Optional |
|||||||||
Frequency |
50HZ |
|||||||||

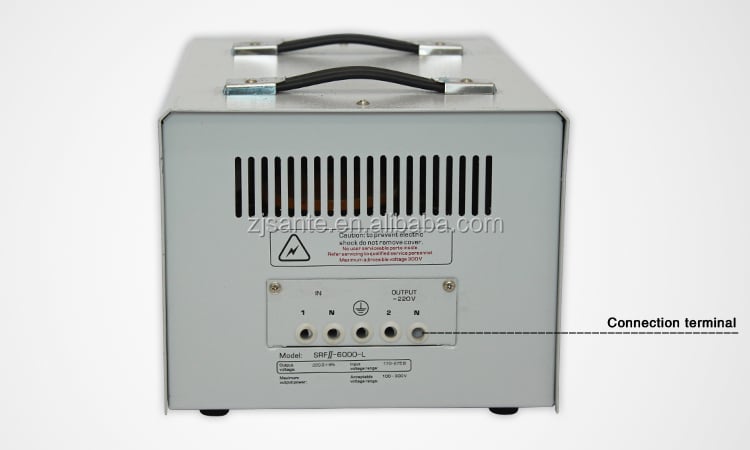

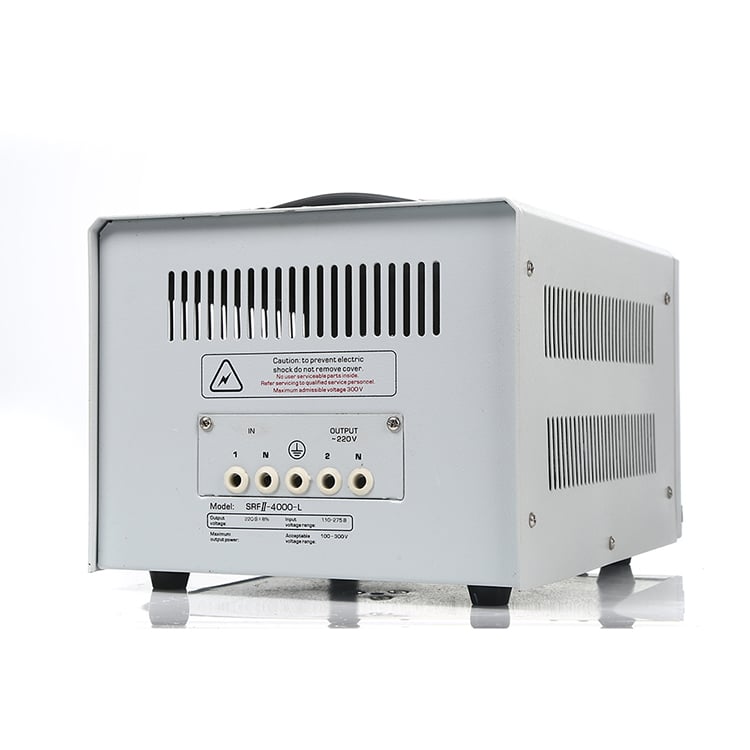

Connection Type |
Output terminal block |
|||||||||
Regulation |
||||||||||
Regulation % |
8% |
|||||||||
Number of Taps |
7、6、5 |
|||||||||
Transformer Type |
Toroidal auto transformer |
|||||||||
Regulation Type |
Relay type |
|||||||||

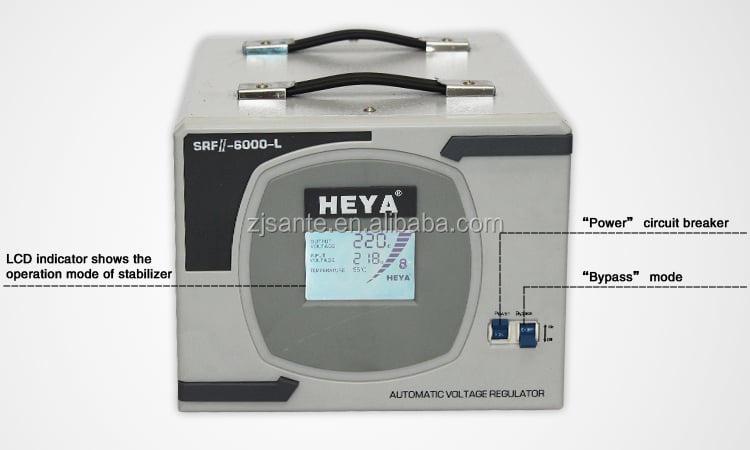

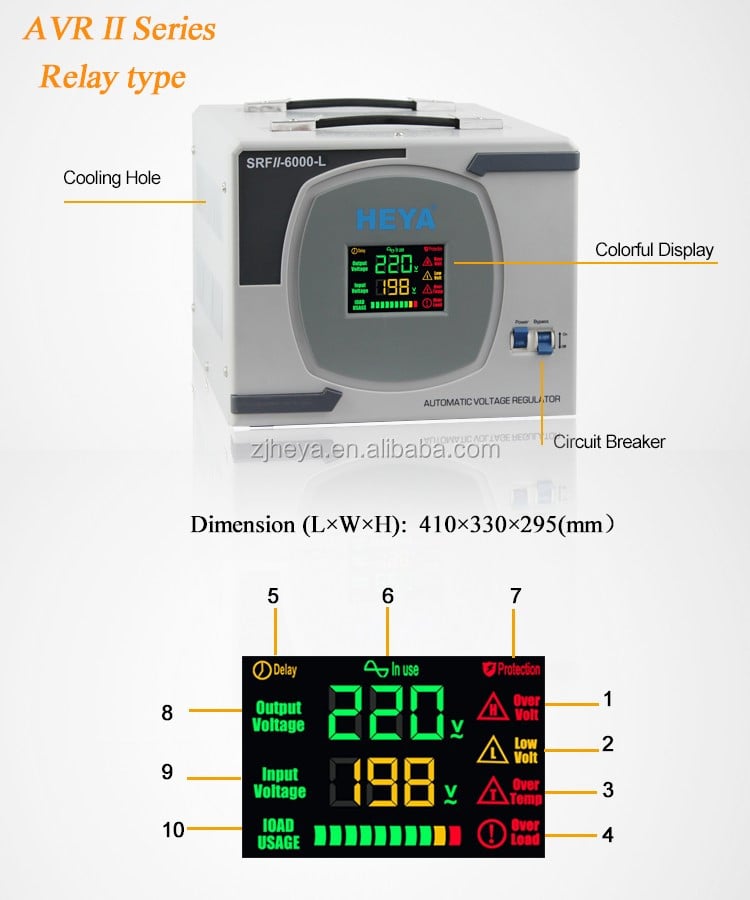

Indicators |
||||||||||

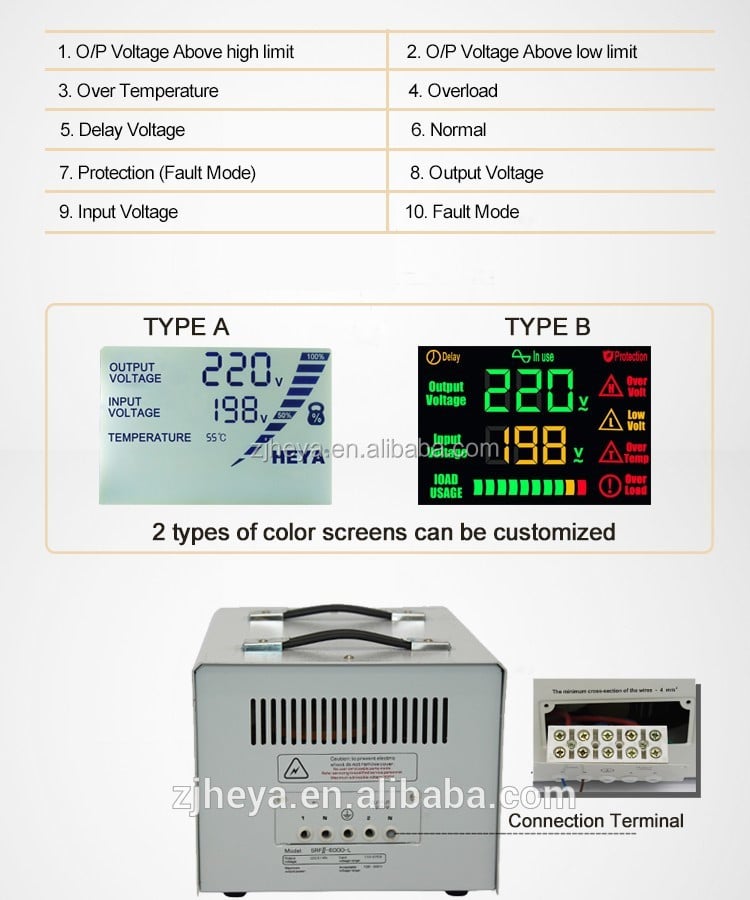

LCD Display |
Input voltage Output voltage Delay time Load usage Normal working Temperature of transformer Error code |
|||||||||
Protection |
||||||||||
Over Temperature |
Auto Shutdown at 120 ℃ |
|||||||||
Short Circuit |
Auto Shutdown |
|||||||||
Overload |
Auto Shutdown |
|||||||||
Over / Under Voltage |
Auto Shutdown |
|||||||||
Packaging information |
||||||||||
Model |
Unit PCS |
Device Size MM |
Package Size MM |
G. W. KGS |
G. W. KGS |
|||||
SRFII-4000-L |
1 |
350*245*210 |
430*325*280 |
12.52 |
||||||
SRFII-6000-L |
1 |
350*245*210 |
430*325*280 |
13.62 |
||||||
SRFII-9000-L |
1 |
430*245*210 |
505*325*280 |
19.54 |
||||||
SRFII-12000-L |
1 |
430*245*210 |
505*325*280 |
21.42 |
||||||
A. We accept TT, 30% deposit and 70% balance against copy of BL
Q 2. How's the delivery time?
A. usually it will take about 10-25 days for production. For sample usually in 1 week.
Q 3. Tell me the standard of package?
A. For the small capacity, color box as inner package and carton as delivery package.
For big capacity, use strong wooden case for protection.
Q 4. What kind of material of transformer?
A. For servo type stabilizer, we have two types, one 100% copper and the other is copper with aluminum. It depends on your requirement. In fact, those two have no difference if normal work well. Only except the long life. Copper is better and also higher price. For relay type stabilizer, we use toroid coils, the material is aluminum. comparing with square coils, toroid coils with high efficiency.
Q 5. Could you offer Form A or C/O?
A. It totally not a problem. We can prepare relative documents to forgive affairs office or other office to apply for this certificate.
Q 6. Would you accept to use our logo?
A. Our logo is HEYA. If your order has good quantity, it absolute no problem to do OEM.
But you use our logo HEYA will be high appreciated.
Q 7. We want to know month capacity.
A. It depends on which model. For example for relay type small capacity, month capacity can reach near 10000pcs and big capacity near 2000pcs.
Q 8. Where is your market?
Q 9. What kind of certificate you have?
A. Our company already obtained ISO9001, BV, EAC, SONCAP, CE, PCT, SGS, design and technical patents certificates
HEYA
The 9KVA and 10KVA Automatic Voltage Regulators Stabilizers are designed to provide stable voltage for all your home and office appliances. These are easy to install and operate with input voltage ranging from 110V to 275V making them suitable for use in a wide range of environments. With an output voltage of 220V. Perfect for use with high-power single-phase appliances such as air conditioners refrigerators and freezers. The 7KW and 8KW output power rating of this ensures that your appliances will run smoothly and efficiently without any fluctuations or jumps in voltage. Incorporates advanced technology that ensures accurate and stable voltage regulation even under heavy load conditions. Feature state-of-the-art microprocessors that monitor the input voltage and control the output voltage with precision providing reliable and consistent performance at all times. Equipped with a range of safety features that protect your appliances from damages caused by power surges overloads or short circuits. Include built-in fuses surge protection devices and thermal overload protection ensuring your appliances remain safe and functional at all times. Whether you're looking to protect your home or office appliances from voltage fluctuations or want to ensure uninterrupted power supply these are the perfect solution. High-quality reliable and efficient voltage stabilizers are suitable for use in a wide range of applications making them ideal for commercial residential and industrial environments. If you’re looking for a durable and reliable voltage stabilizer that will keep your appliances running smoothly, then you can’t go wrong with these.
