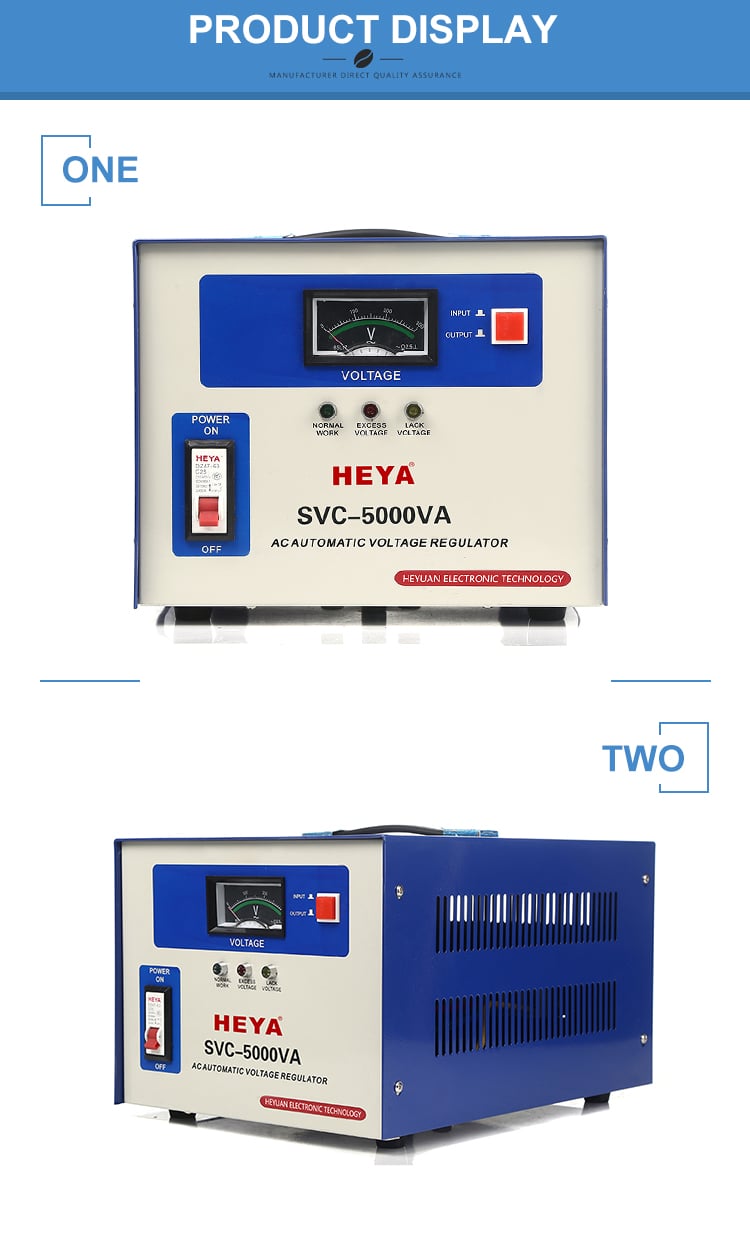

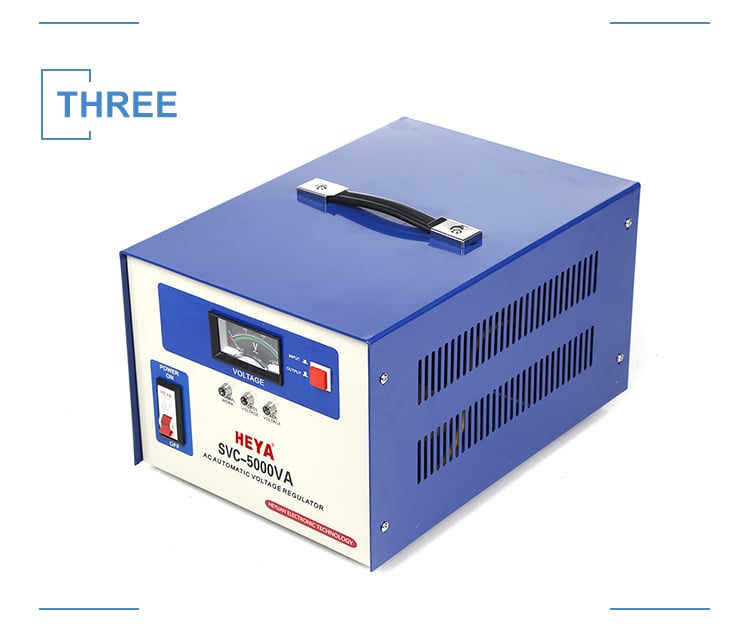

5000W SVC Servo Motor Automatic Voltage Regulator Stabilizers 220V 110V Single Phase for Voltage Protection
Description
|
Model
|
SVC-5000
|
||
|
Nominal Power
|
5000VA
|
||
|
Power Factor
|
0.6-1.0
|
||
|
Input
|
|||
|
Operating Voltage Range
|
120~275V
|
Regulation Voltage Range
|
140~260V custom made
|
|
Frequency |
50HZ
|
Connection Type |
0.5~1.5KVA Power cord with plug
2~12KVA Input terminal block
|
|
Output
|
|||
|
Operating Voltage
|
180~255V
|
High Cut Voltage
|
255V
|
|
Low Cut Voltage
|
180V
|
Safety Cycle
|
3 Seconds / 180 Seconds Optional
|
|
Frequency |
50HZ
|
Connection Type |
0.5-1.5KVA Output socket 2~10KVA Output terminal block
|
|
Regulation
|
|||
|
Regulation %
|
1.5% / 3.5%
|
Number of Taps
|
NO
|
|

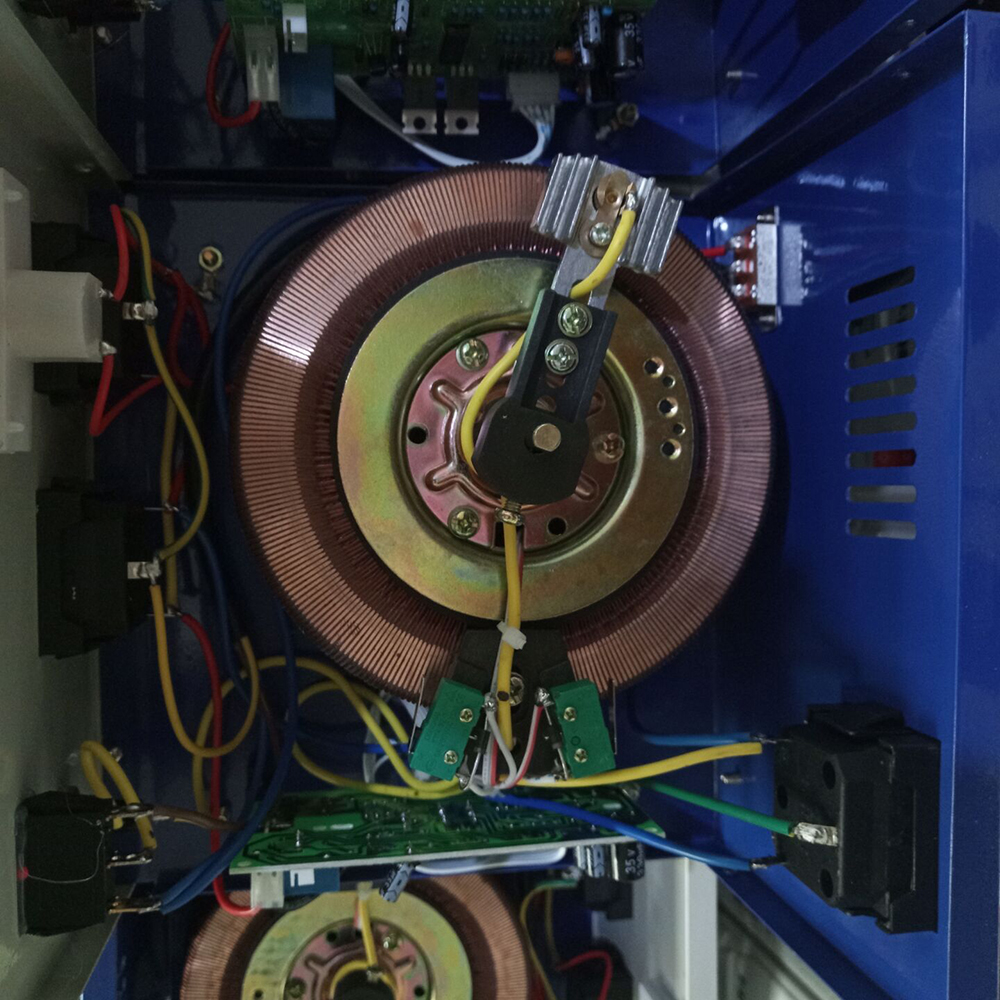

Transformer Type
|
Toroidal auto transformer
|
Regulation Type
|
Servo type
|
|
Indicators
|
|||
|
LED display
|
Input voltage 、Output voltage、Load
|
||
|
Protection
|
|||
|
Over Temperature
|
Auto Shutdown at 120 ℃
|
Protection
|
Auto Shutdown
|
|
Overload
|
Auto Shutdown
|
Over / Under Voltage
|
Auto Shutdown
|
A. We accept TT, 30% deposit and 70% balance against copy of BL.
Q 2. How's the delivery time?
A. usually it will take about 10-25 days for production. For sample usually in 1 week.
Q 3. Tell me the standard of package?
A. For the small capacity, color box as inner package and carton as delivery package.
For big capacity, use strong wooden case for protection.

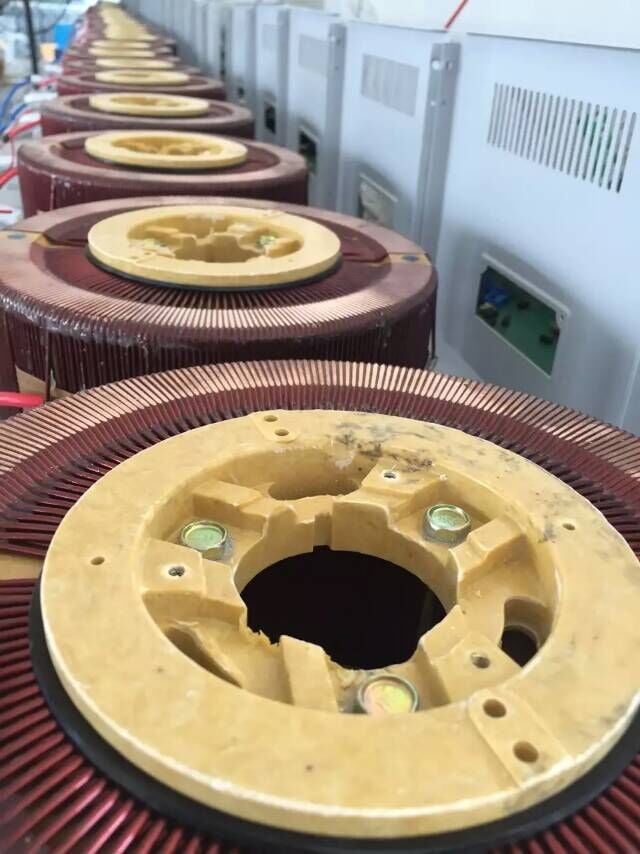

Q 4. What kind of material of transformer?
A. For servo type stabilizer, we have two types, one 100% copper and the other is copper with aluminum. It depends on your requirement. In fact, those two have no difference if normal work well. Only except the long life. Copper is better and also higher price. For relay type stabilizer, we use toroid coils, the material is aluminum. comparing with square coils, toroid coils with high efficiency.
Q 5. Could you offer Form A or C/O?
A. It totally not a problem. We can prepare relative documents to forgive affairs office or other office to apply for this certificate.
Q 6. Would you accept to use our logo?
A. Our logo is HEYA. If your order has good quantity, it absolute no problem to do OEM.
But you use our logo HEYA will be high appreciated.
Q 7. We want to know month capacity.
A. It depends on which model. For example for relay type small capacity, month capacity can reach near 10000pcs and big capacity near 2000pcs.
Q 8. Where is your market?
Q 9. what kind of certificate you have?
A. Our company already obtained ISO9001, BV, EAC, SONCAP, CE, PCT, SGS, design and technical patents certificates
HEYA
Introducing the 5000W SVC Servo Motor Automatic Voltage Regulator Stabilizers 220V 110V Single Phase. This is a must-have for anyone who wants to protect their valuable appliances and electronic devices from voltage fluctuations. With a 5000W capacity these are capable of regulating voltage fluctuations in both 220V and 110V single-phase power supplies. You can use this device to protect your appliances whether you are in a 220V or 110V area. It can handle even the most voltage-intensive devices such as refrigerators washing machines and air conditioners. One of the standout features is its servo motor mechanism allows for very precise voltage regulation ensuring that your devices are always receiving the optimal voltage for their operation. Built-in microcomputer that is capable of detecting voltage fluctuations within a 0.1s response time. Quick and efficient voltage regulation that won't damage your devices. LED display shows the input and output voltage in real-time so you can easily monitor your devices' voltage. With an alarm function that will inform you when there is an issue with the voltage. Especially useful for protecting sensitive electronic devices like computers and televisions. Designed with your convenience in mind. It is incredibly easy to install and comes with clear instructions that even the most novice can follow. Once installed this is virtually maintenance-free so you can have peace of mind knowing that your appliances are protected without any additional effort on your part. Order yours today and start protecting your appliances.
