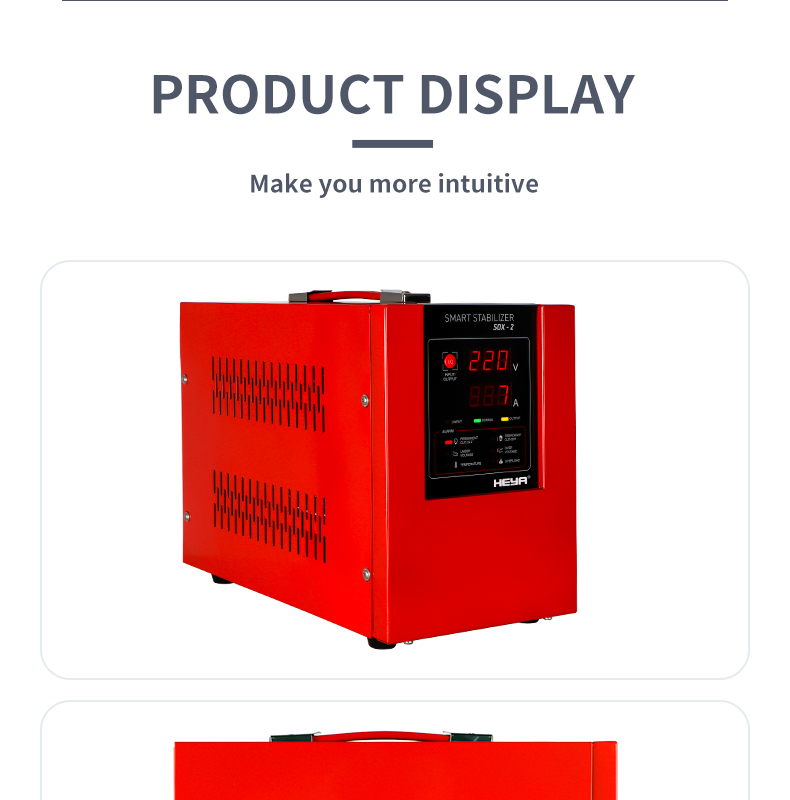

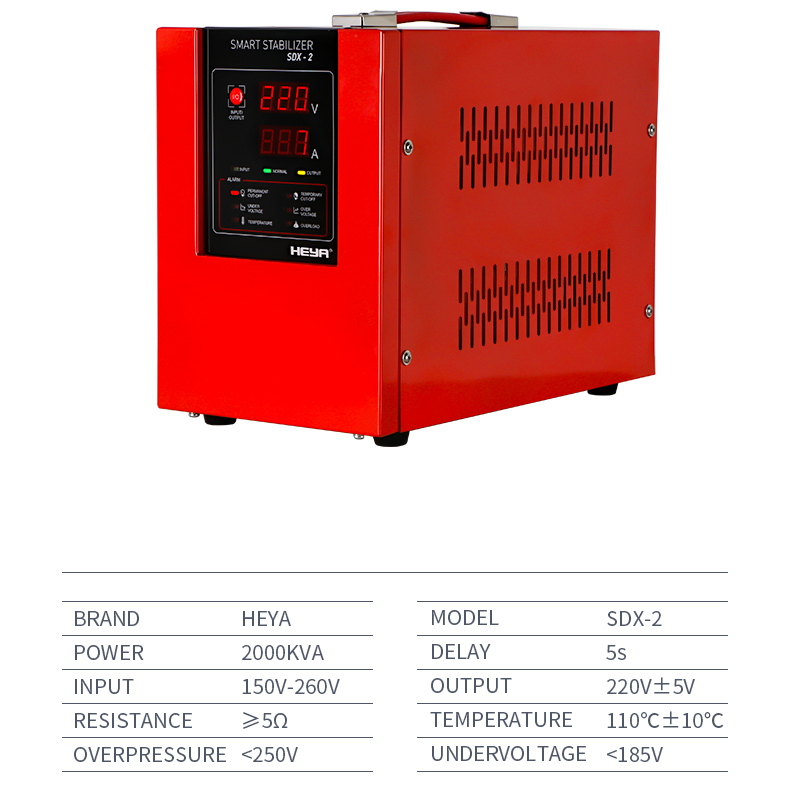

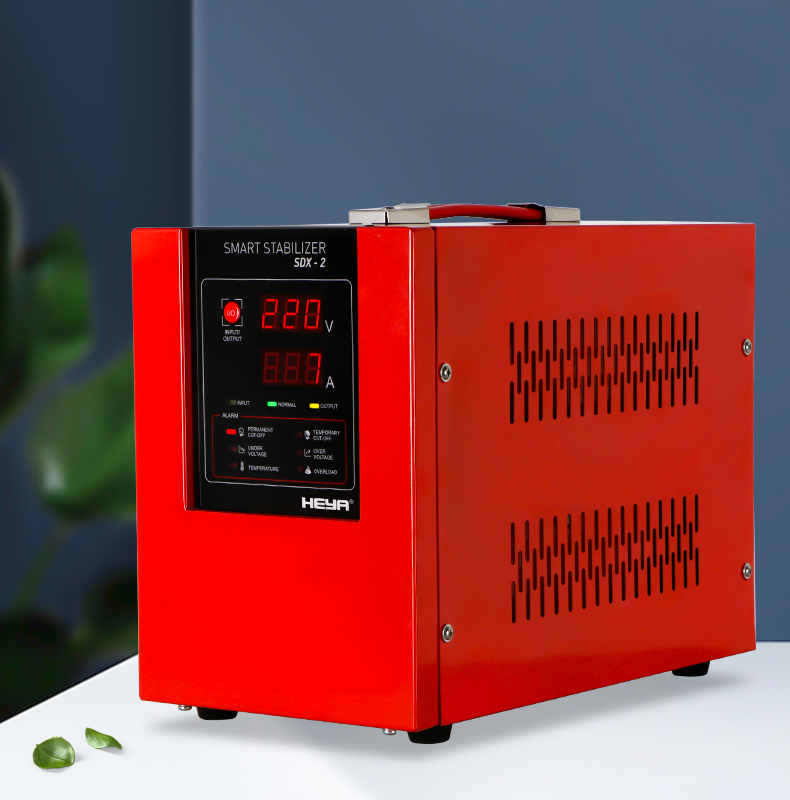

2KVA Regulateur De Tension Servo AC Automatic Voltage Regulators Stabilizers AVR 2000W 1600W
Description
2KVA Regulateur De Tension Servo AC Automatic Voltage Regulators Stabilizers AVR 2000W 1600W
The advantages of this model
1. Wide input voltage: AC 140~260V or customize 100~260V / 80~260V
2. High technology: programmed control computerized
3. The high accuracy of the output voltage(220V±1, 5%)
4. Quality insurance: Main spare parts made by ourselves, for example, transformer, PCB.
5. Perfect protection function: over/low voltage protection, over-heat/load protection, short circuit protection.
6. Option function: with voltage regulator and mains supply two kind output voltage choice function, in mains supply relatively stable season, the user can put voltage stabilizer in mains supply state, there is no power consumption, it is economic and convenient.
7. High efficiency: More than 95%
Technology Parameter
Model |
SVC-500 |
SVC-1000 |
SVC-1500 |
SVC-2000 |
|
SVC-3000 |
SVC-5000 |
SVC-8000 |
SVC-10000 |
Nominal Power |
500VA |
1000VA |
1500VA |
2000VA |
|
3000VA |
5000VA |
8000VA |
10000VA |
Power Factor |
0.6-1.0 |
|||
Input | ||||
Operating Voltage Range |
120~275V |
|||
Regulation Voltage Range |
140~260V (custom made) |
|||
Frequency |
50HZ |
|||
Connection Type |
0.5~1.5KVA(Power cord with plug) 2~12KVA(Input terminal block) |
|||
Output | ||||
Operating Voltage |
180~255V |
|||
High Cut Voltage |
255V |
|||
Low Cut Voltage |
180V |
|||
Safety Cycle |
3 Seconds / 180 Seconds (Optional) |
|||
Frequency |
50HZ |
|||

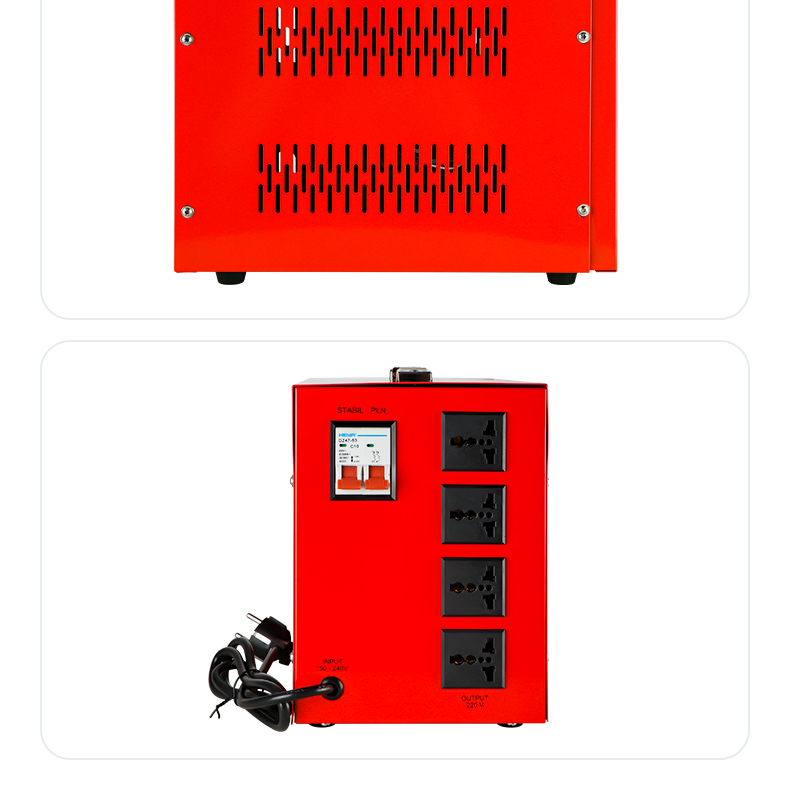

Connection Type |

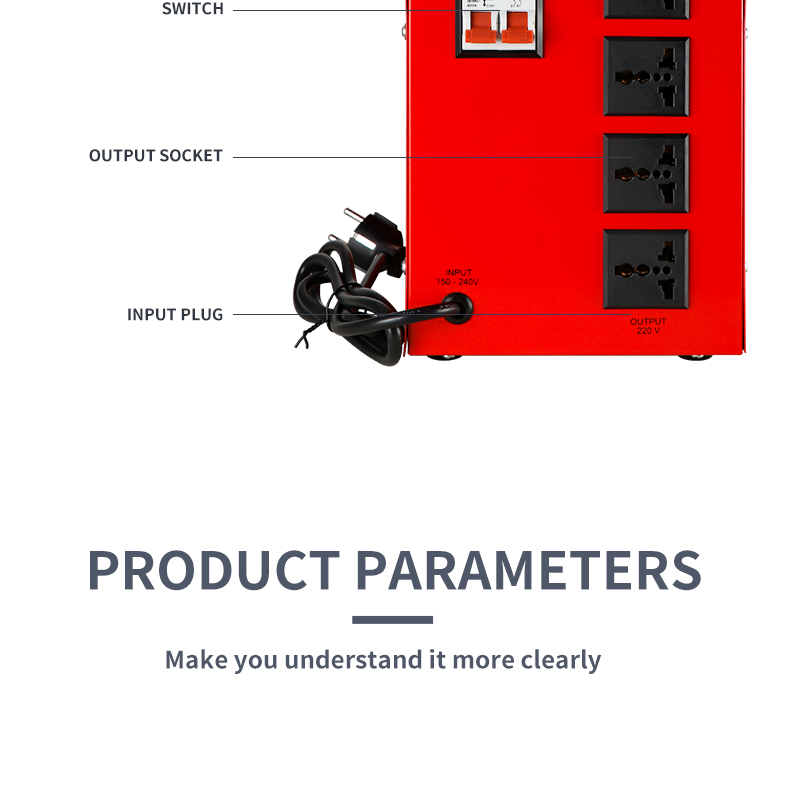

0.5-1.5KVA(Output socket), 2~10KVA(Output terminal block) |
|||
Regulation | ||||
Regulation % |
1.5% / 3.5% |
|||
Number of Taps |
NO |
|||
Transformer Type |
Toroidal auto transformer |
|||
Regulation Type |
Servo type |
|||

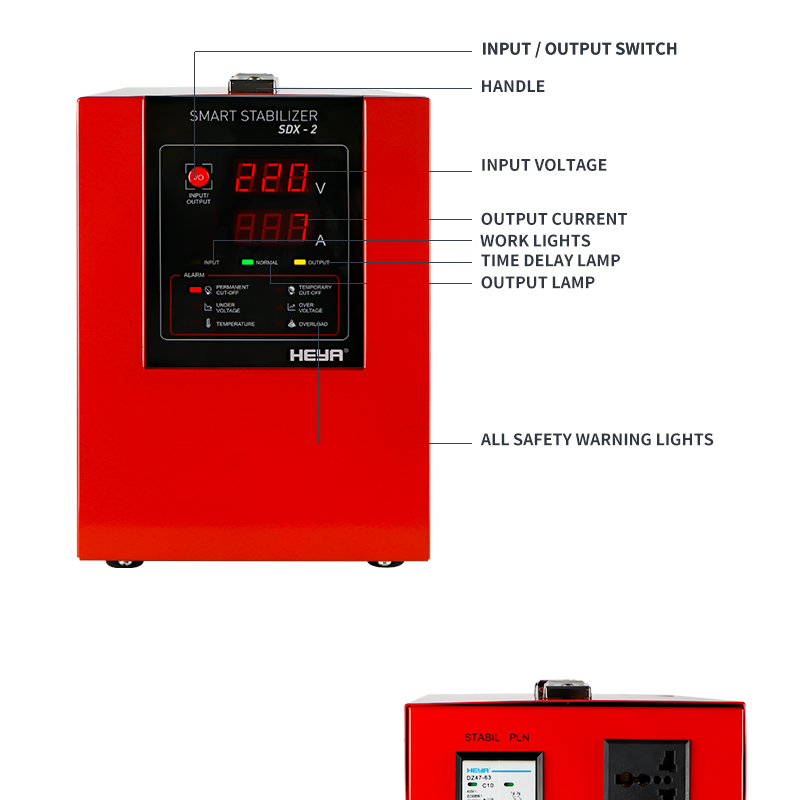

Indicators | ||||
Digital / Meter display |
Input voltage, Output voltage, Load |
|||
Protection | ||||
Over Temperature |
Auto Shutdown at 120 ℃ |
|||
Short Circuit |
Auto Shutdown |
|||
Overload |
Auto Shutdown |
|||
Over / Under Voltage |
Auto Shutdown |
|||
Specification, Dimensions and Weight
Model |
Unit(PCS) |
Device Size(MM) |
Package Size(MM) |
G. W. (KGS) |
SVC-500 |
4 |
170*188*140 |
425*245*340 |
16.80 |
SVC-1000 |
4 |
198*212*160 |
495*275*385 |
22.40 |
SVC-1500 |
4 |
198*212*160 |
495*275*385 |
24.40 |
SVC-2000 |
2 |
280*245*195 |
615*355*240 |
18.50 |
SVC-3000 |
2 |
307*235*230 |
605*385*285 |
26.00 |
SVC-5000 |
1 |
310*390*200 |
460*390*275 |
18.00 |
SVC-8000 |
1 |
310*390*200 |
460*390*275 |
24.00 |
SVC-10000 |
1 |
310*390*200 |
460*390*275 |
25.50 |

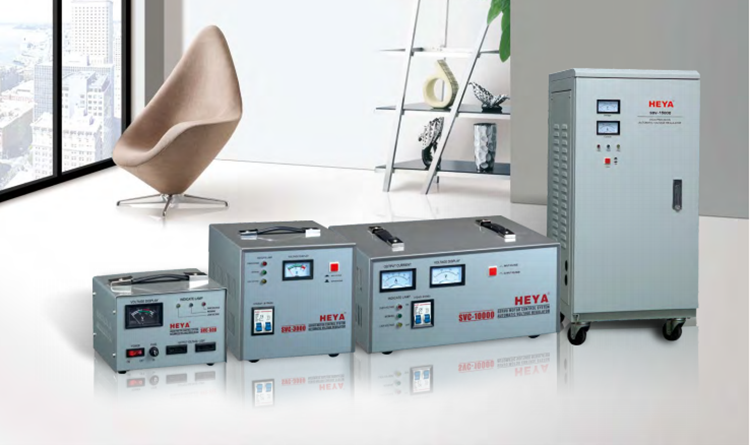

Hot sale SVC 3000VA 140-260VAC servo motor Digital/Meter display full power AC automatic voltage regulator/stabilizer Hot sale SVC 3000VA 140-260VAC servo motor Digital/Meter display full power AC automatic voltage regulator/stabilizer Hot sale SVC 3000VA 140-260VAC servo motor Digital/Meter display full power AC automatic voltage regulator/stabilizer
Q 1. what's the payment term
A. We accept TT, 30% deposit and 70% balance against copy of BL.
Q 2. how's the delivery time
A. usually it will take about 10-25 days for production. For sample usually in 1 week.
Q 3. Tell me the standard of package
A. For the small capacity, color box as inner package and carton as delivery package.
For big capacity, use strong wooden case for protection.

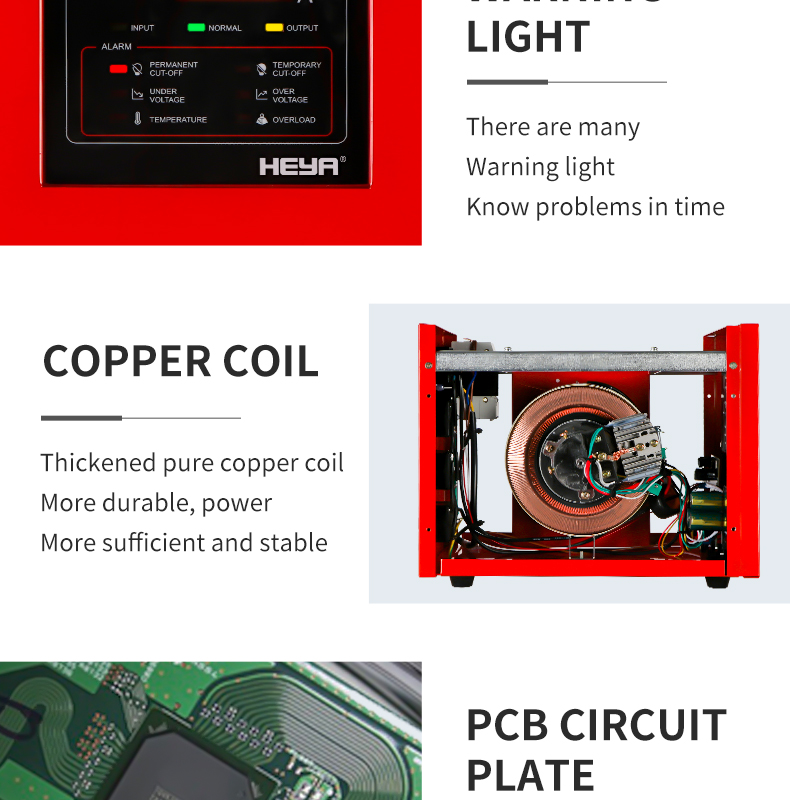

Q 4. What kind of material of transformer
A. For servo type stabilizer, we have two types, one 100% copper and the other are copper with aluminum. It depends on your requirement. In fact, those two have no difference if normal work well. Only except the long-life. Copper is better and also higher price. For relay type stabilizer, we use toroid coils, the material is aluminum. comparing with square coils, Toroid coils with high efficiency.
Q 5. Could you offer Form A or C/O
A. It totally not a problem. We can prepare relative documents to forging affairs office or other office to apply for this certificate.
Q 6. Would you accept to use our logo
A. Our logo is HEYA. If your order has good quantity, it absolutely no problem to do OEM.
But you use our logo HEYA will be high appreciated.
Q 7. We want to know month capacity.
A. It depends on which model. For example, for relay type small capacity, month capacity can reach near 10000pcs and big capacity near 2000pcs.
Q 8. Where is your market A. Our products are popular in North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western European so on. Some of them are our regular customers and some of them are developing. We hope you can join us and make mutual benefit from our cooperation.
Q 9. what kind of certificate you have
A. Our company already obtained CE, ISO9001, BV, EAC, SONCAP, CE, PCT, SGS, design and technical patents certificates.
HEYA
The 2KVA Regulator De Tension Servo AC automated Voltage Regulators Stabilizers AVR 2000W 1600W is a robust and voltage dependable important for protecting your gear electrical from.
A unit ensures easy-to-use the voltage supplied to your gear stays stable and within safe limits. It features a servo enhanced that monitors the input voltage and adjusts the output voltage in real-time to keep a supply constant.
Were created for a selection of gear from HEYA small devices like television sets and computer systems to larger equipment like refrigerators. In addition, includes a power 1600W that produces it use appropriate circumstances the place where a reduced energy score is required.

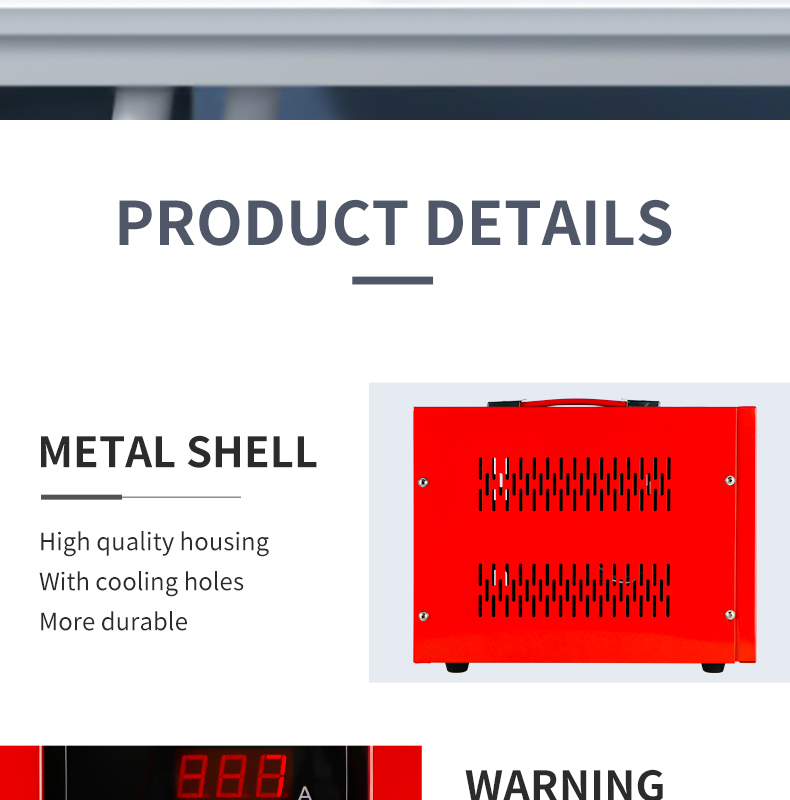

The construction is robust with top-quality materials designed to withstand the rigors of day-to-day usage. The item was made to last and can offer years of reliable service making your gear valuable is protected.
A task not hard install with clear directions provided inside the individual manual. Built to fit seamlessly into the setup building current breeze to work with and maintain.
