12KVA 10000W Relay or Servo LCD 220V AC Regulator 10kw Voltage Stabilizer SVC Single Phase Customize LCD Display HEYA/OEM CN;ZHE


Description

Presenting the HEYA 12KVA 10000W Relay/Servo LCD 220V AC Regulator 10kw Voltage Stabilizer SVC Single Phase. This voltage customizable is an item this is important ensuring your product or service and products which could be electronic protected through the destruction of voltage changes and energy surges. The HEYA SVC Single Phase Voltage Stabilizer is at reality developed to offer dependable and voltage it is efficient for a lot of you services and products quite as much as 10kw. This voltage regulator is advantageous both for domestic and make use of commercial it is well suited for safeguarding gear delicate is electronic. The regulator is sold with a LCD reveal assists and that can be customizable in reality is an task record straightforward amounts and any issues that may arise. The HEYA SVC Voltage stabilizer carries a sleek modern design insurance policy businesses an intuitive control system that's not difficult to use. The HEYA SVC Voltage regulator includes a voltage selection big offer cent insurance policy organizations a voltage single-phase of 220V AC. It shall help to make yes your products or services or services or solutions are protected against any voltage improvements which will happen such as for example brownouts and energy surges. The HEYA SVC Voltage stabilizer runs making utilization of both servo and relay technology causing this to be exceptionally efficient and dependable in managing voltage amounts. The relay technology allows you to be sure that voltage quantities stay static in merely a quantity real in fact is fixed inspite for the understood indisputable fact that any voltage is established as a result of the servo technology this will be crucial efficiently and quickly. The HEYA SVC Voltage stabilizer include top-quality elements that might be built to carry on for the bit it is very long. The products is stated in CN; ZHE and it is experienced by HEYA's dedication to delivering products which are top-quality. The HEYA SVC Voltage stabilizer possesses maker this is guarantee this can be undoubtedly one-year ensuring your investment is protected


heyuan1-zyz

12KVA 10000W relay or servo LCD 220V AC Automatic Voltage Regulator/Stabilizer/AVR



Product Description

SPECIFICATIONS OF SINGLE PHASE SERVO CONTROLLED WALL TYPE AUTOMATIC VOLTAGE REGULATOR SDFII SERIES 4KVA-12KVA

Model

SDWII-4000-L

SDWII-6000-L

SDWII-10000-L

SDWII-12000-L

Nominal Power

4000VA

6000VA

10000VA

12000VA

Power Factor

0.6-1.0

Input

Operating Voltage Range

120~275V

Regulation Voltage Range

140~260V custom made

Frequency

50HZ

Connection Type

Input terminal block

Output

Operating Voltage

180~255V

High Cut Voltage

255V

Low Cut Voltage

180V

Safety Cycle

8 Seconds / 180 Seconds Optional

Frequency

50HZ

Connection Type

Output terminal block

Regulation

Regulation %

1.5% / 3.5%

Number of Taps

NO

Transformer Type

Toroidal auto transformer

Regulation Type

Servo type

Indicators

LCD Display

Input voltage

Output voltage

Delay time

Load usage

Normal working

Temperature of transformer

Error code

Protection

Over Temperature

Auto Shutdown at 120 ℃

Short Circuit

Auto Shutdown

Overload

Auto Shutdown

Over / Under Voltage

Auto Shutdown

Packaging information

Model

Unit PCS

Device Size MM

Package Size MM

G. W. KGS

SDWII-4000-L

1

385*265*155

440*355*210

13.26

SDWII-6000-L

1

385*265*155

440*355*210

16.80

SDWII-10000-L

1

440*300*175

535*395*270

25.30

SDWII-12000-L

1

440*300*175

535*395*270

28.30

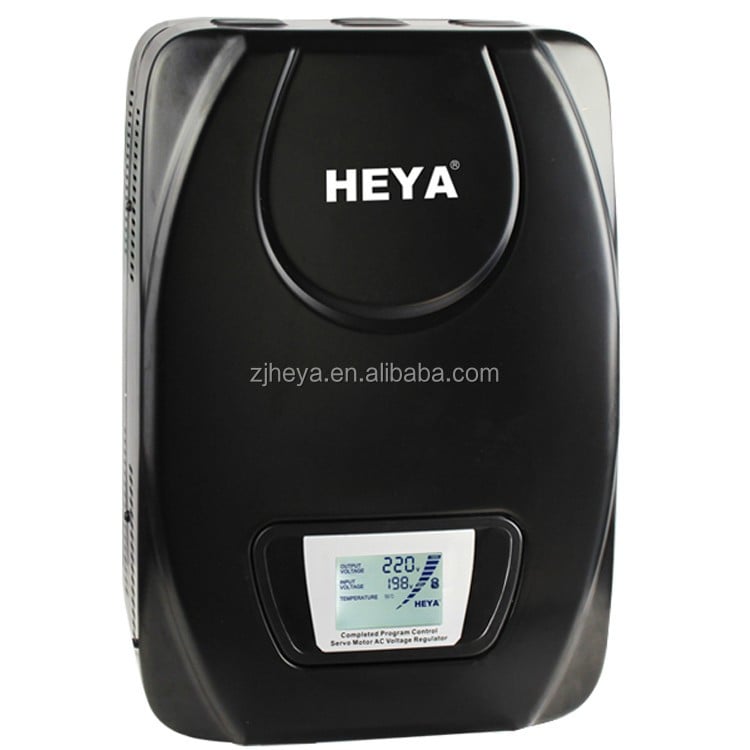

 .jpg

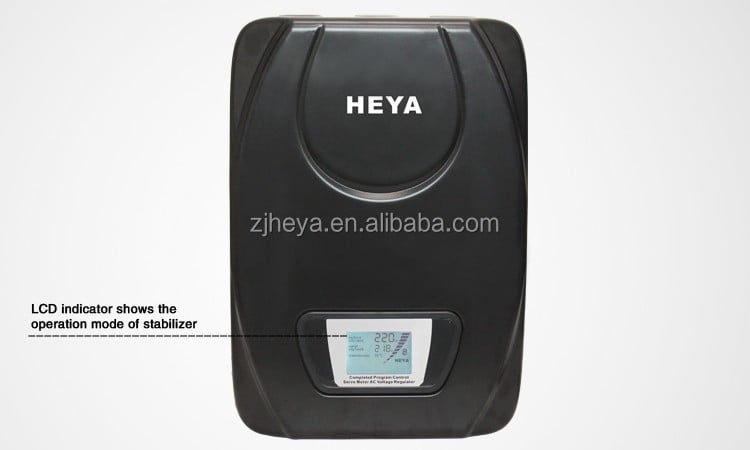

SDWII-12000-L-1 -  (1).jpg

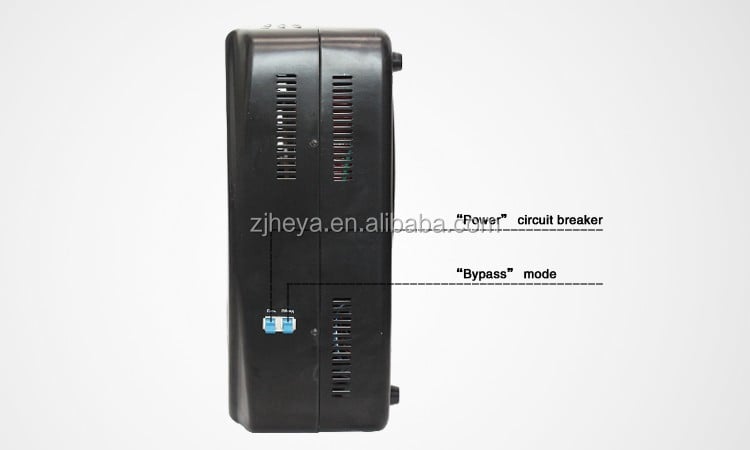

SDWII-12000-L-1 -  (2) - .jpg

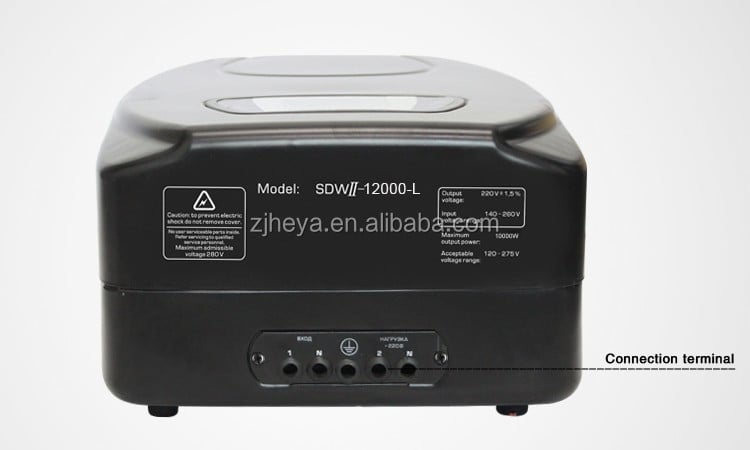

SDWII-12000-L-1 -  (3).jpg

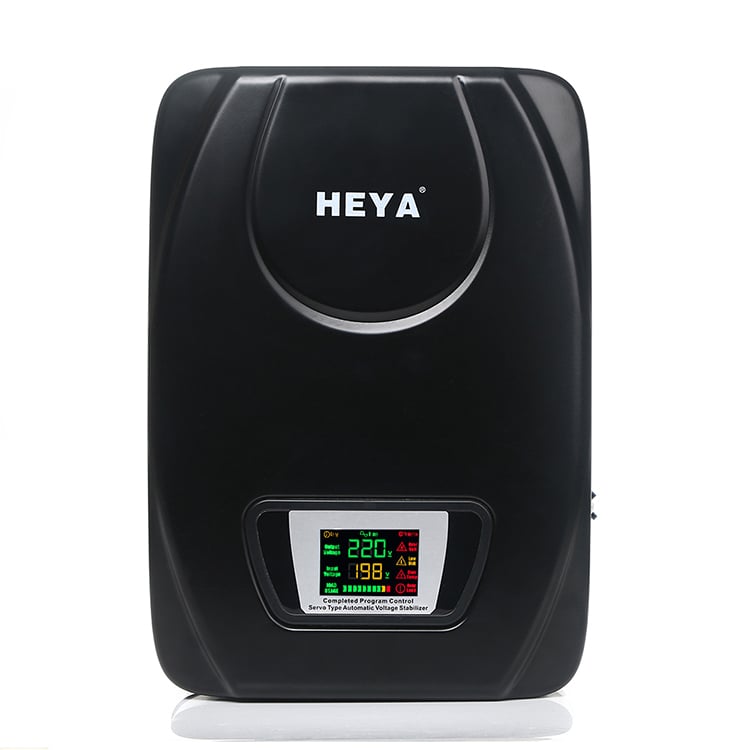

SRWII-LED

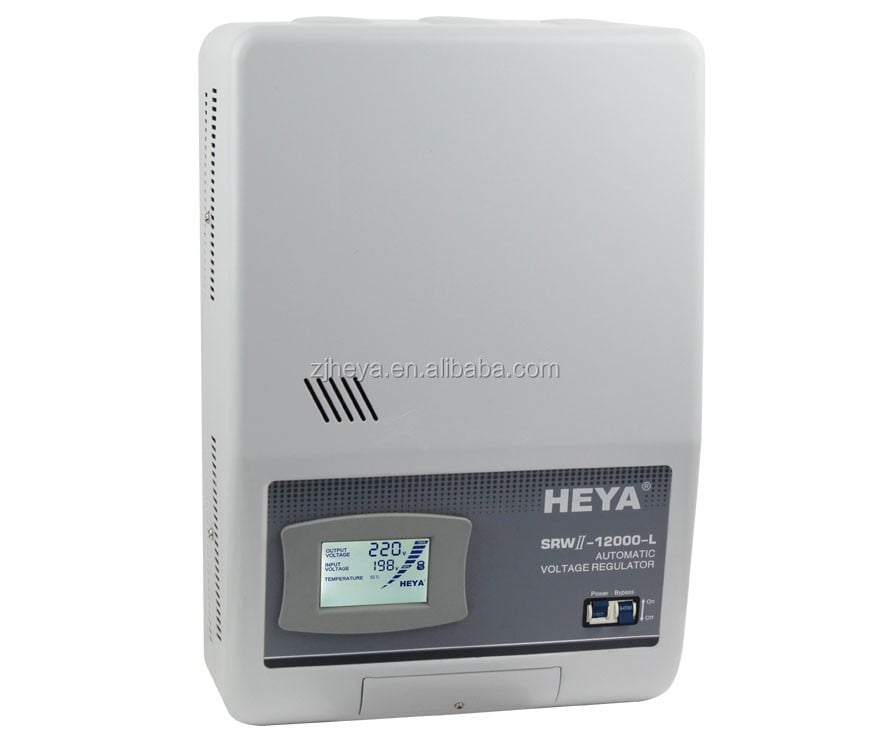

 wall mounted relay control voltage regulator

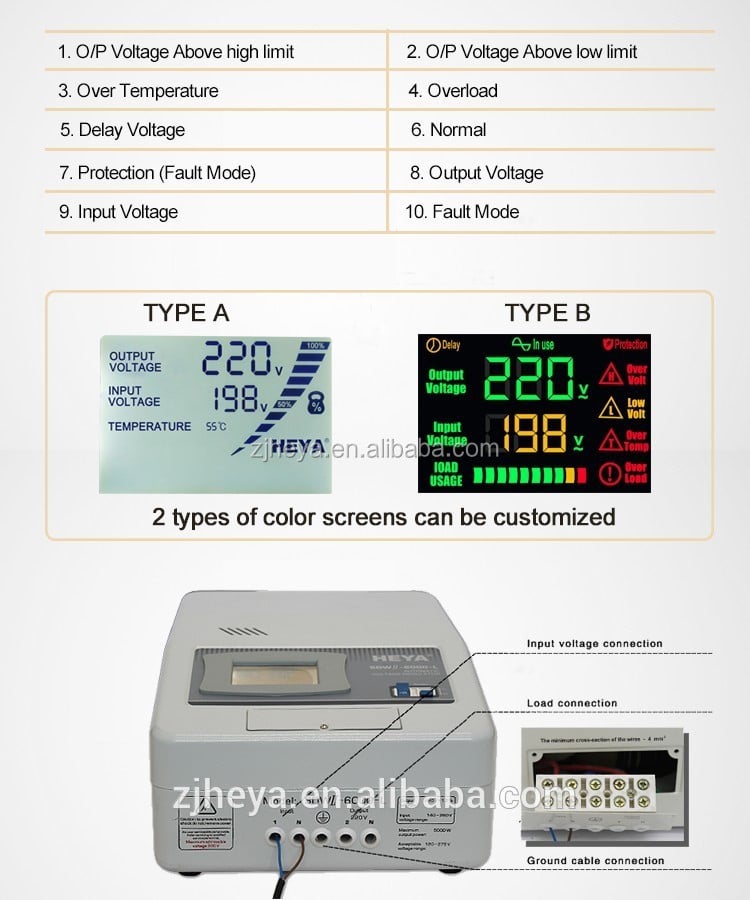

AVR SRWII Regulator 2.jpg

8

Product Function


Related Products


Contact name: Yoko Zhu
Mob/ WeChat / WhatsApp: +86-13736244360  /  0086-13736244360
Skype ID: live: zyz0219         WeChat ID: zhuyuzhe002        QQ: 97033586



12KVA 10000W relay or servo LCD 220V AC Automatic Voltage Regulator/Stabilizer/AVR12KVA 10000W relay or servo LCD 220V AC Automatic Voltage Regulator/Stabilizer/AVR12KVA 10000W relay or servo LCD 220V AC Automatic Voltage Regulator/Stabilizer/AVR

Our Services


FAQ

Q 1. what's the payment term?

A. We accept TT30% deposit and 70% balance against copy of BL

Q 2. how's the delivery time?

A. usually it will take about 25 days for production

Q 3. Tell me the standard of package? A. For the small capacity it use carton but for big capacity we should use strong wooden case for protection.
Q 4. What kind of material of transformer?
A. For servo type stabilizer we have two types one 100% copper and the other is copper with aluminum. It depends on your requirment. In fact those two have no difference if normal work well. Only except the long life. Copper is better and also higher price. For relay type stabilizer we use toroid coils the material is aluminum. comparing with square coils toroid coils with high efficiency.
Q 5. Could you offer Form A or C/O? A. It totally not a problem. We can prepare relative documents to forgive affairs office or other office to apply for this certificate.
Q 6. Would you accept to use our logo?
A. If you have good quantity it absolute no problem to do OEM.
Q 7. We want to know month capacity. A. It depends on which model. For example for relay type small capacity  month capacity can reach near 10000pcs   and big capacity near 2000pcs.
Q 8. Where is your market? A. Our products are popular inNorth America South America Eastern Europe Southeast Asia Africa Oceania Mid East Eastern Asia Western Europeand so on. Some of them are our regular customers and some of them are developing. We hope you can join us and make mutual benefit from our cooperation.
Q 9. what kind of certificate you have?
A. Our company already achieve ISO9001 and for products we have CEPCTSGS.

Contact us

Contact person: Yoko Zhu
Mob/WeChat/Whatsapp: 008613736244360

Skype: live: zyz0219

WeChat ID: zhuyuzhe002

QQ: 97033586

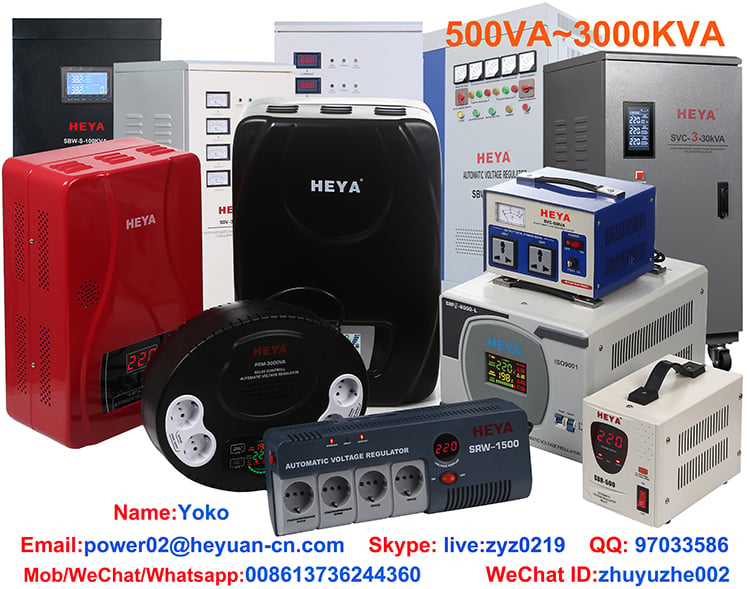

C-zyz-9
